Drive with Grade Assist - TCS

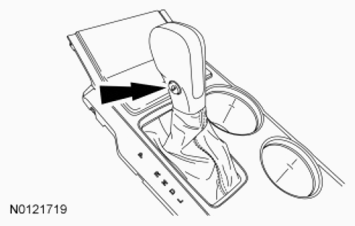

Drive with grade assist is activated when the TCS is pressed. The TCS is located on the selector lever knob. When the TCS is pressed, the 6th gear or O/D upshift is prevented or the transmission shifts down to 5th gear. The TCS is meant to be used when driving conditions cause excessive shifting from 6th to other gears such as hilly terrain, mountainous areas or when engine braking is required.
Grade Assist
- Improves vehicle handling in hilly terrain or mountainous areas by providing engine braking and extending lower gear operation on uphill climbs.
- Additional engine braking is provided through the automatic transmission shift strategy which reacts to vehicle inputs (vehicle acceleration, accelerator pedal, brake pedal and vehicle speed).
- The transmission will select gears that will provide the engine braking desired, based on the vehicle inputs, this will increase engine rpm during engine braking.
It is recommended to return to DRIVE mode on flat terrain to provide the best fuel economy and transmission function. The transmission returns to O/D when the TCS is pressed again or anytime the key is turned OFF.
