DTC Chart: Steering Column Control Module (SCCM)




DTC Chart: Steering Column Control Module (SCCM)

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

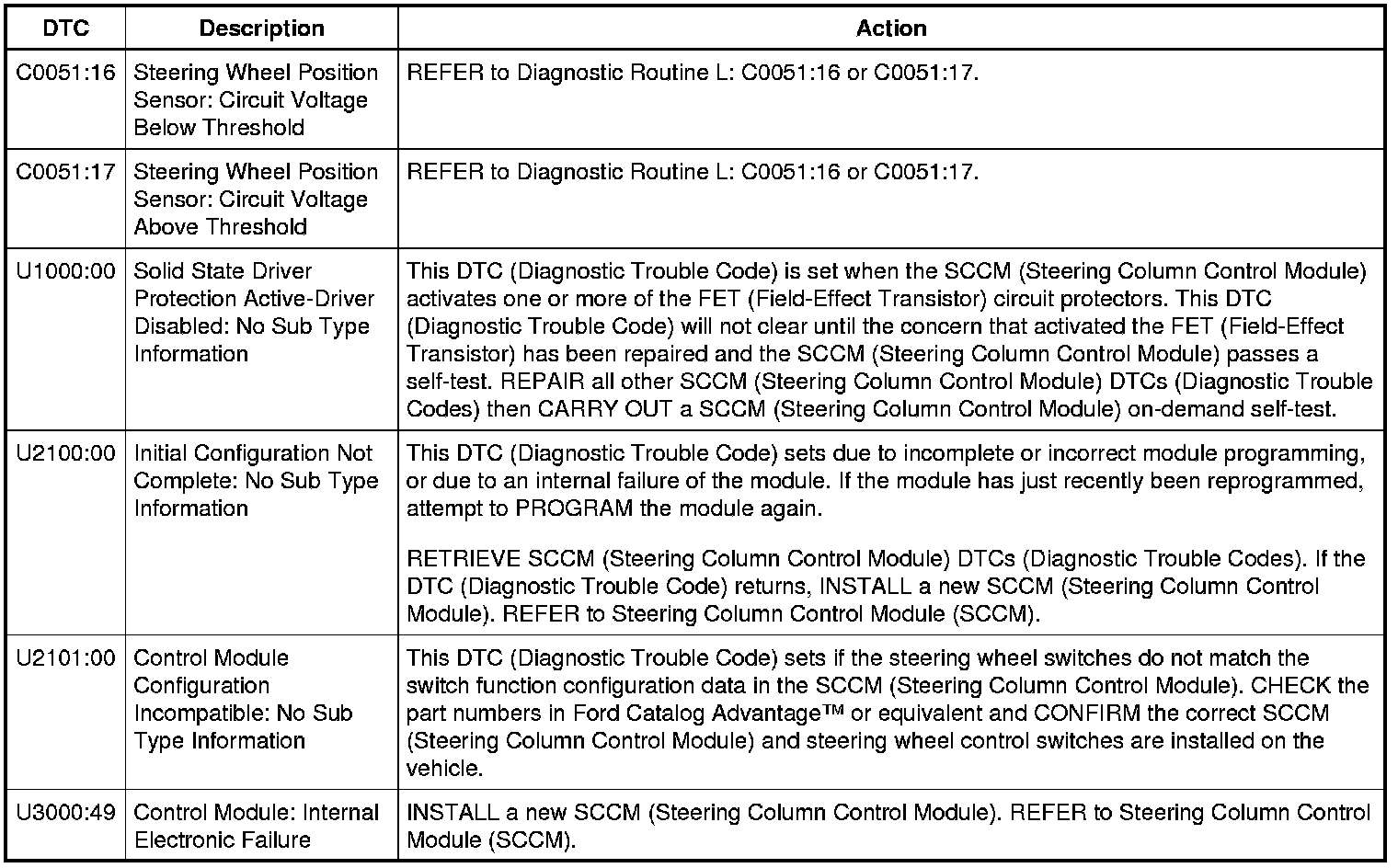

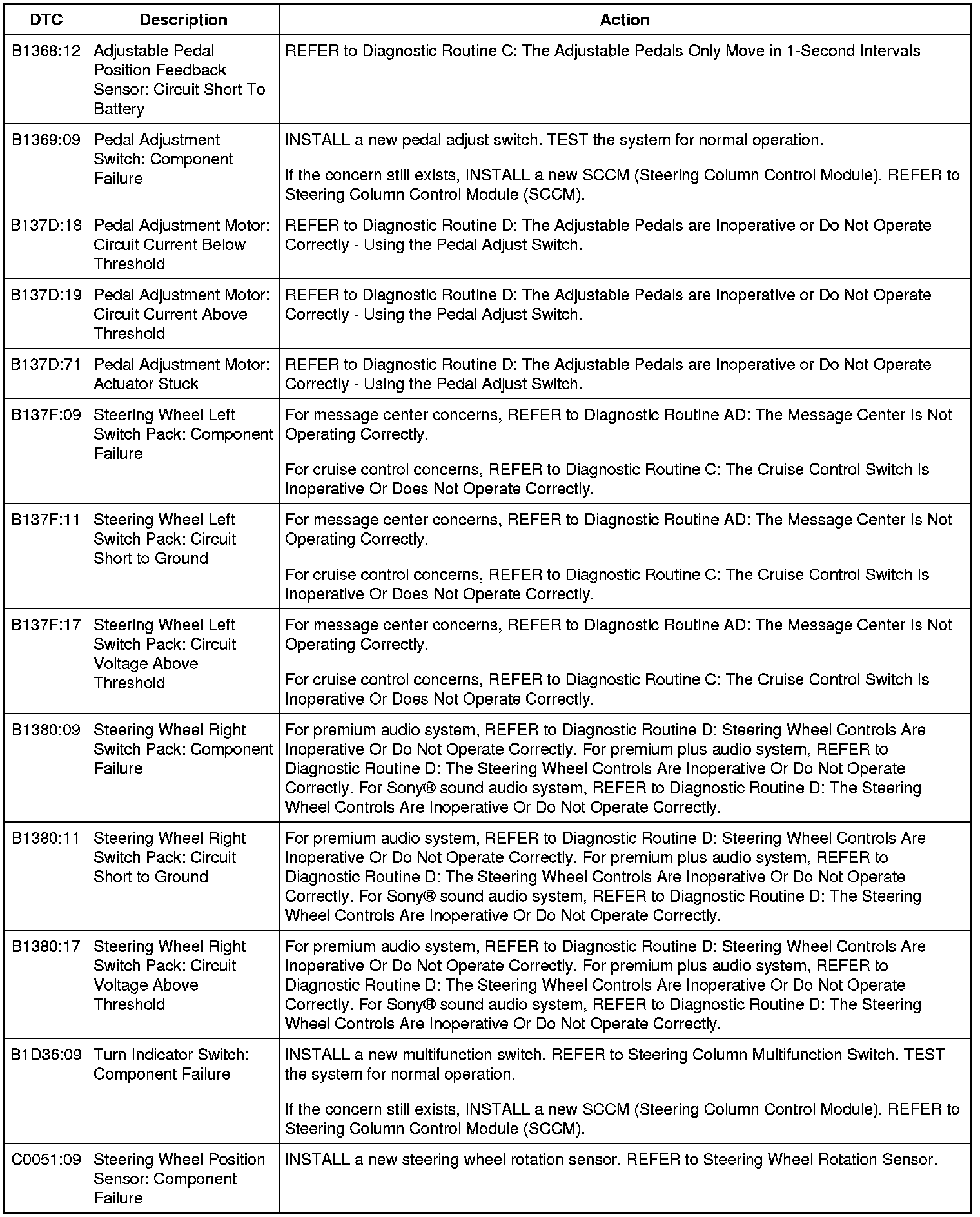

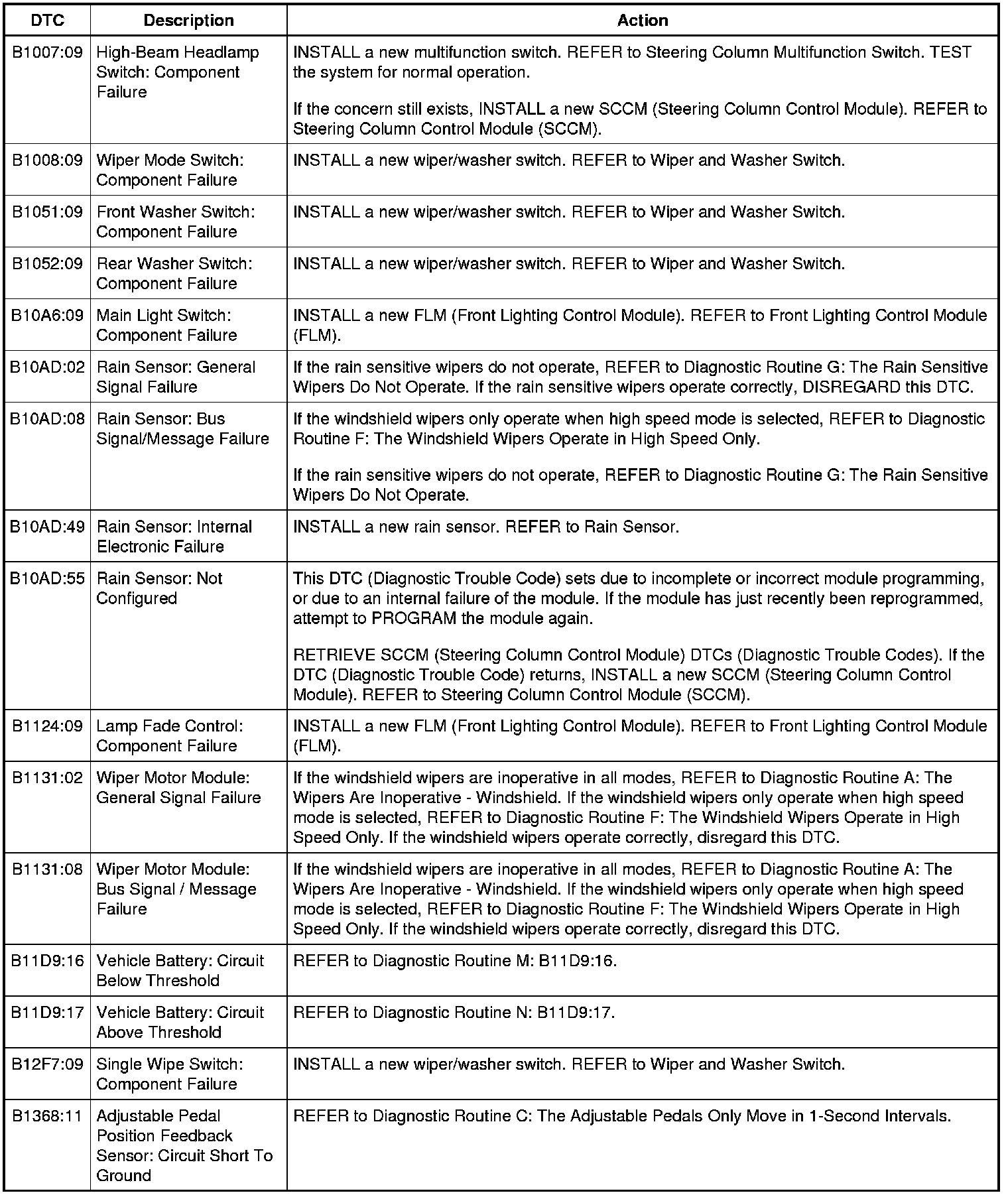

SCCM (Steering Column Control Module) DTC Chart
