System Specifications

Specifications

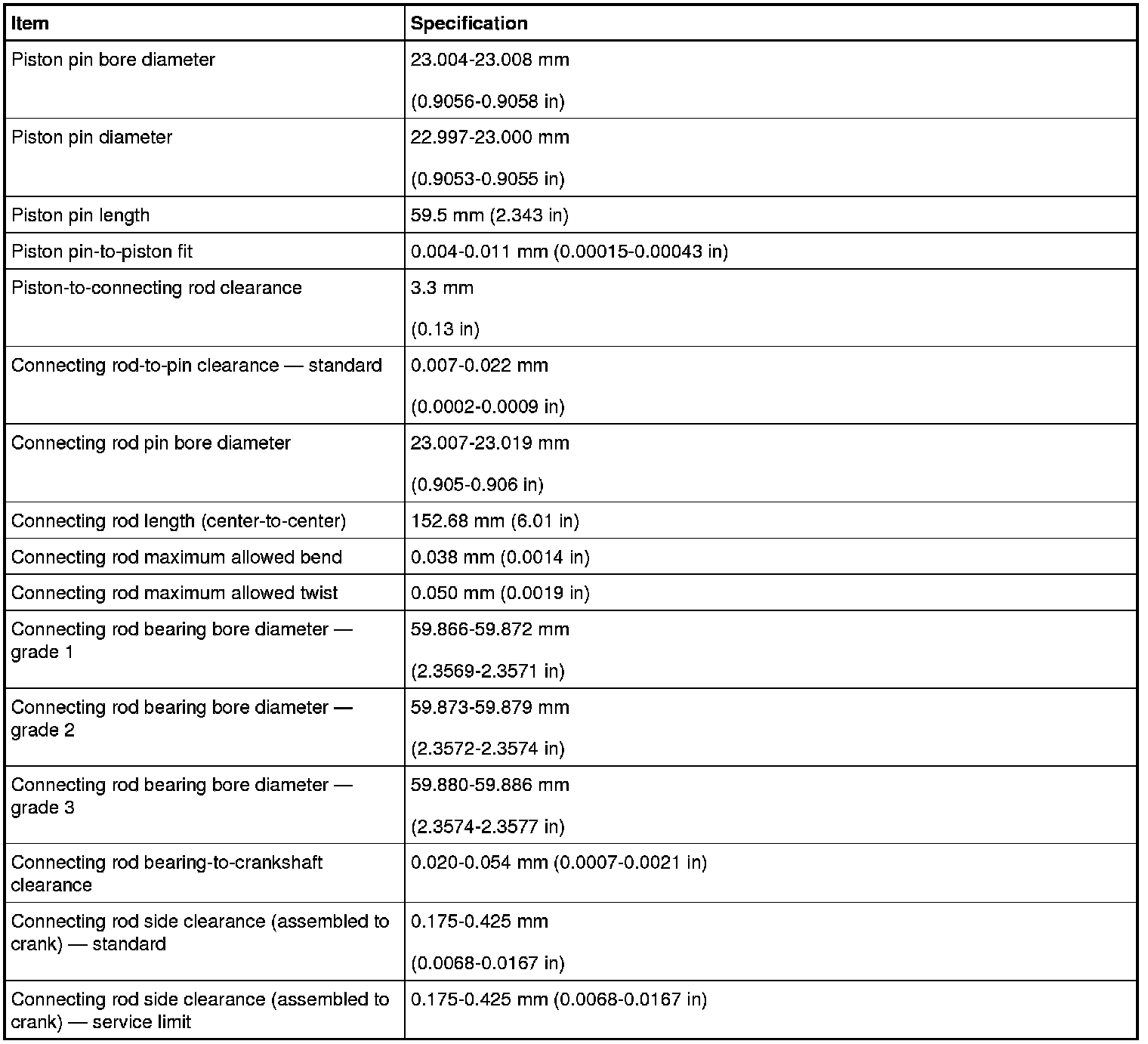

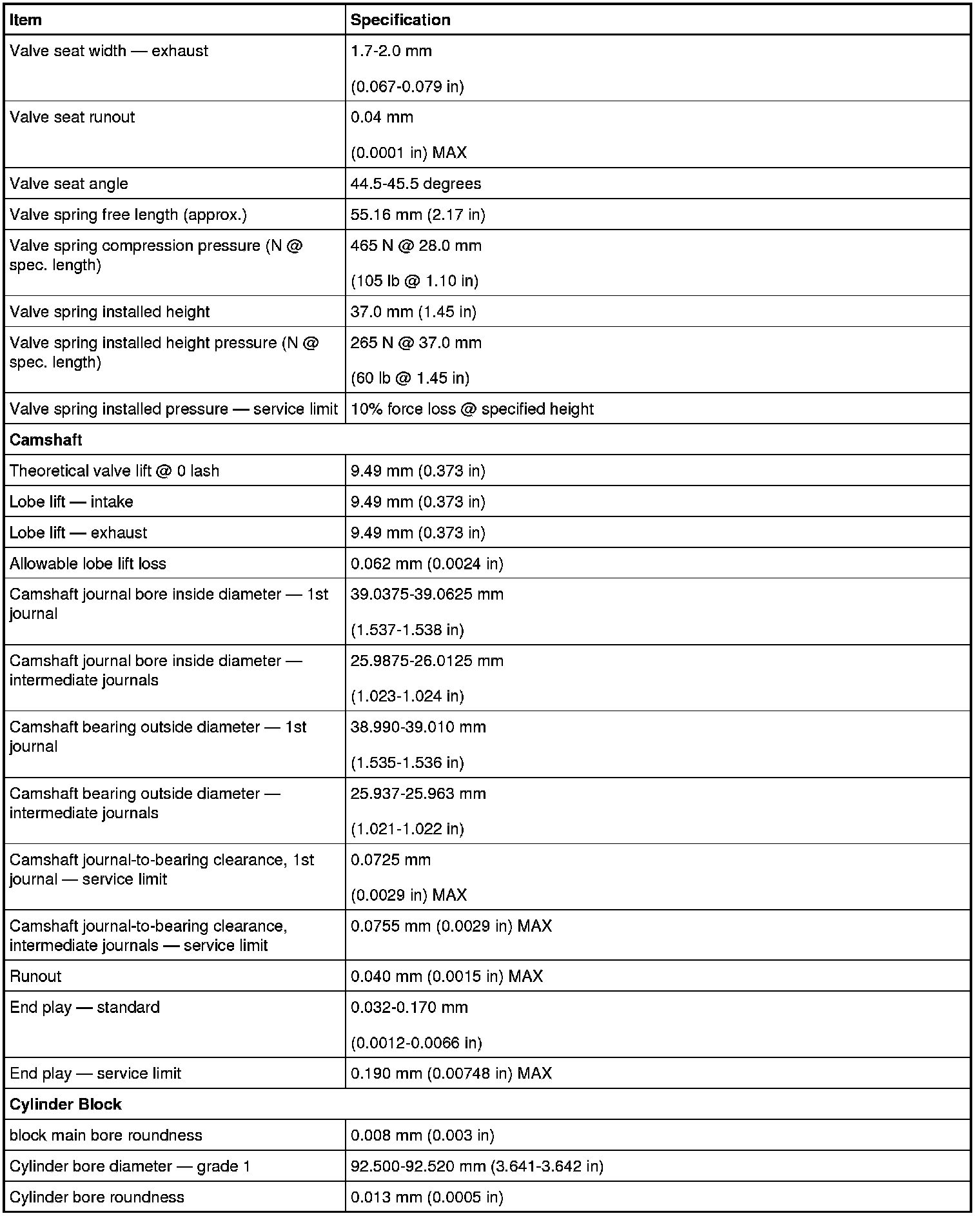

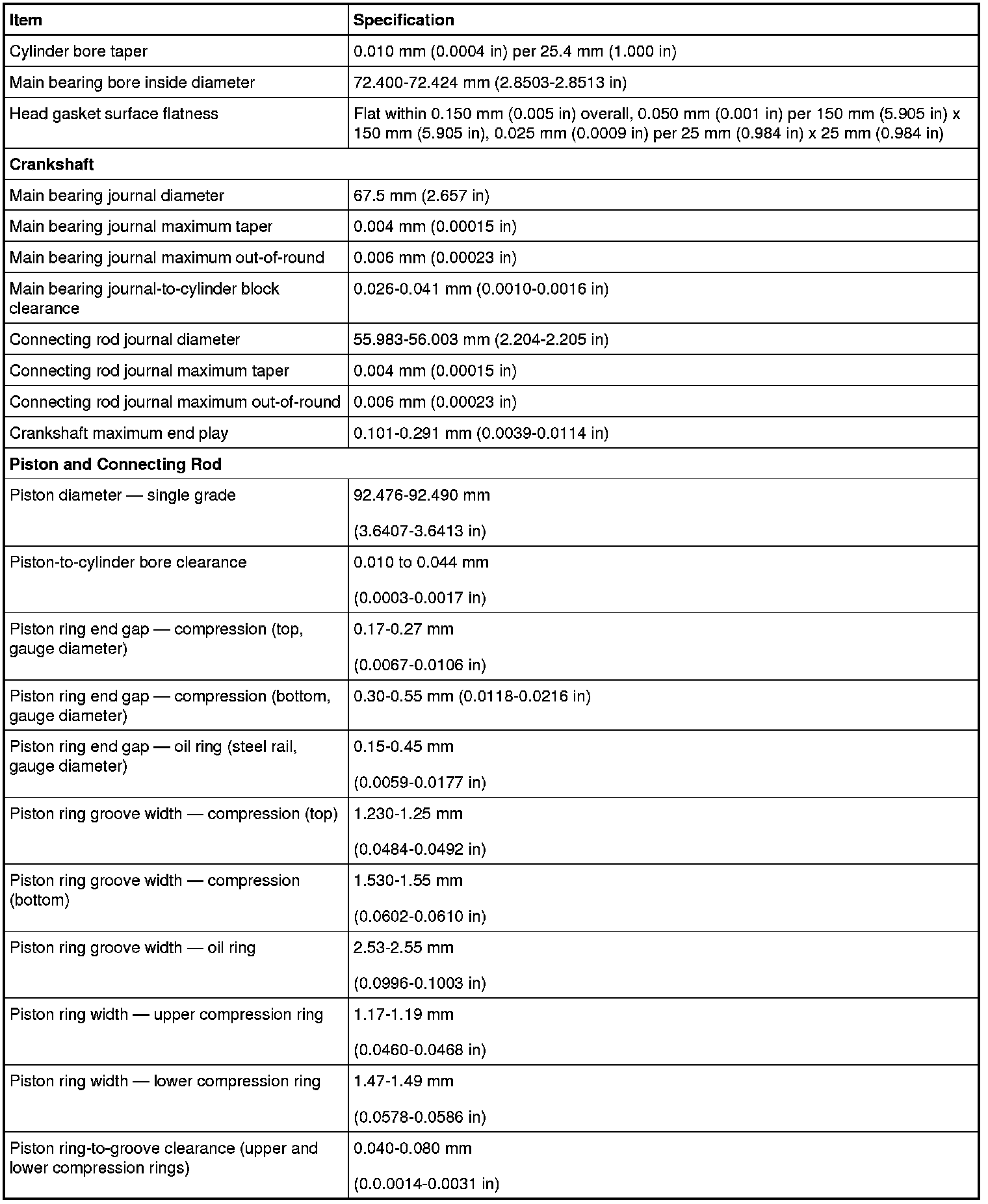

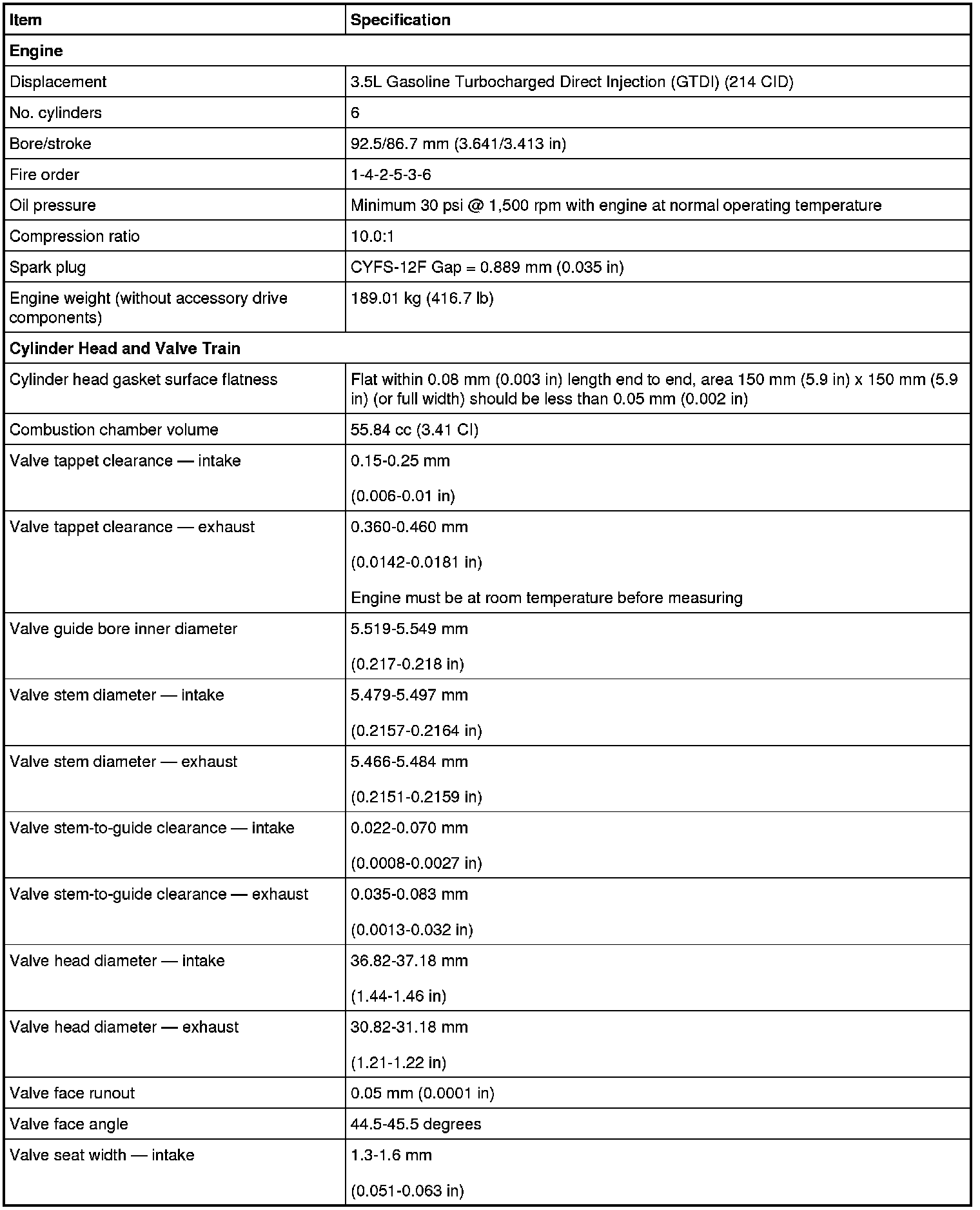

General Specifications

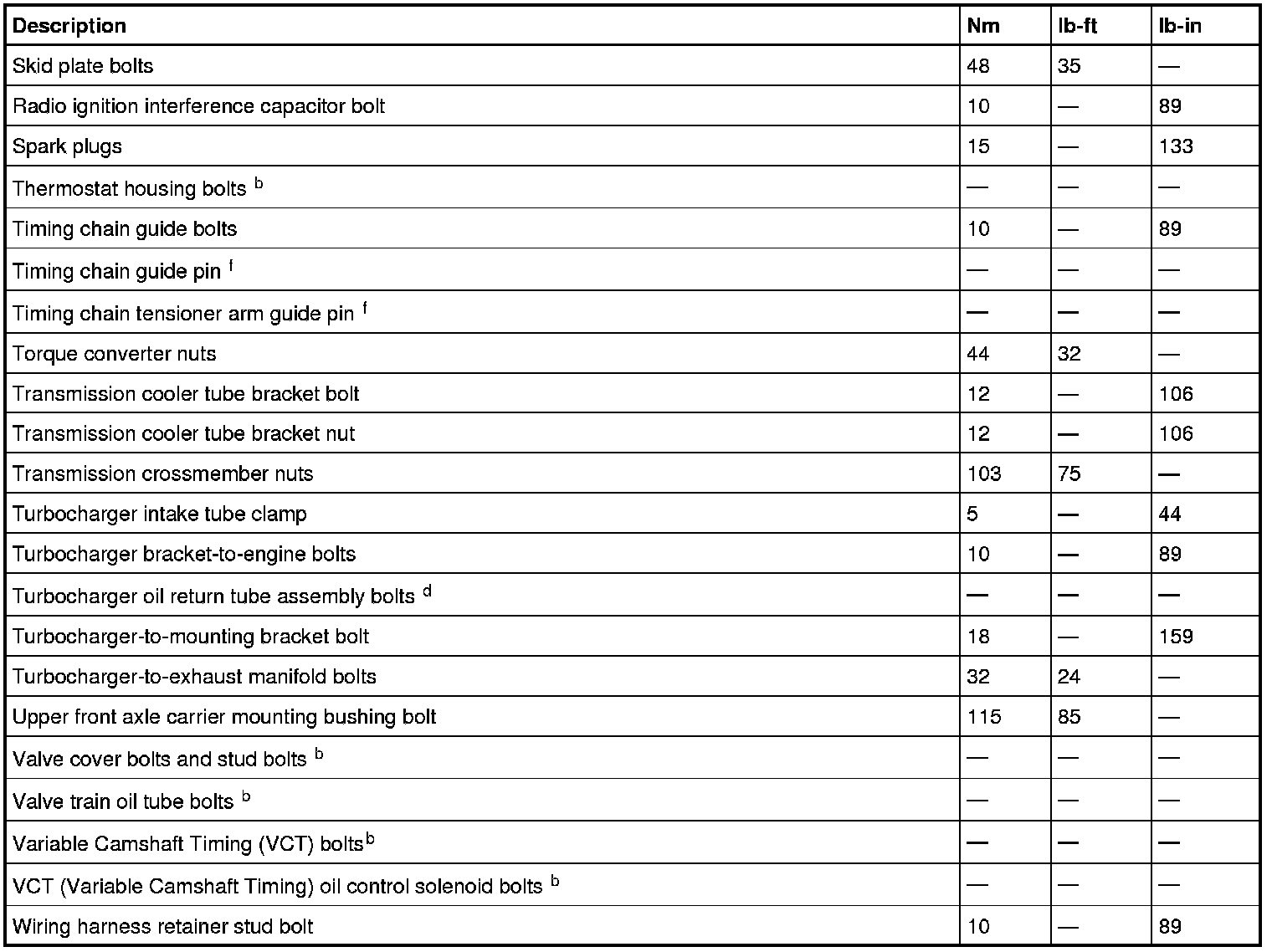

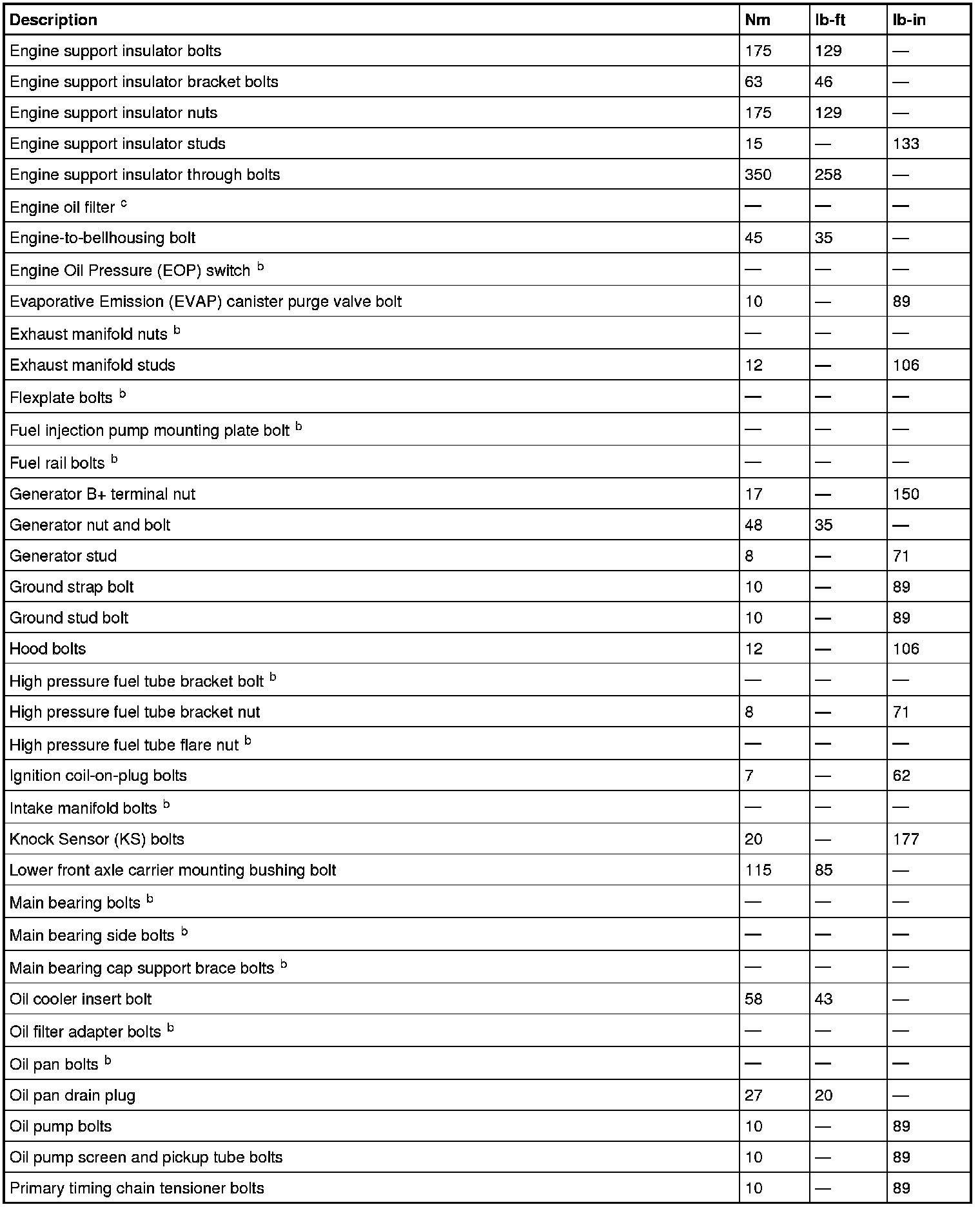

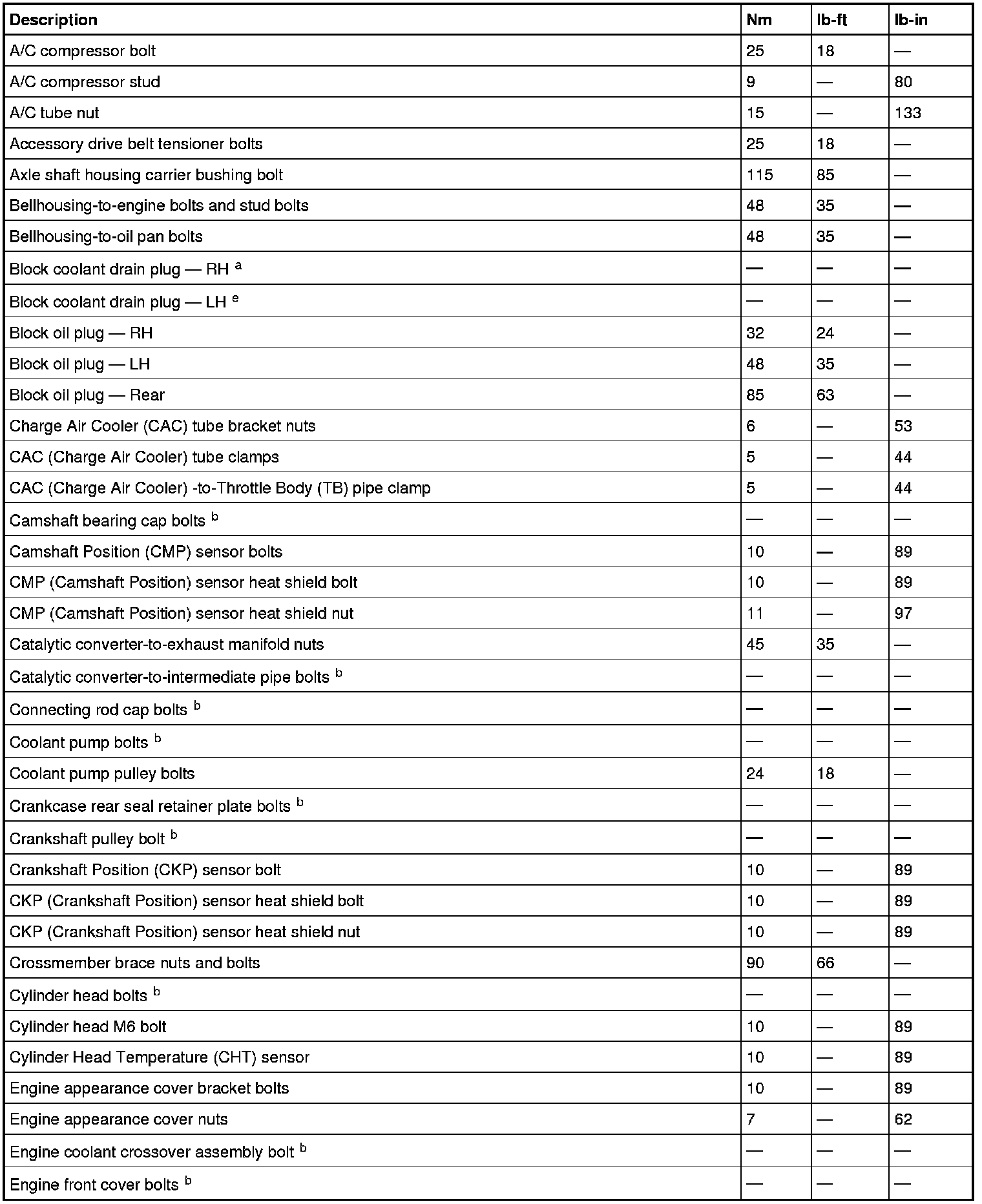

Torque Specifications













a Tighten to 20 Nm (177 lb-in) plus an additional 180 degrees.

e Tighten to 10 Nm (89 lb-in) plus an additional 720 degrees

b Refer to the procedure in this section.

c Tighten to 5 Nm (44 lb-in) plus an additional 180 degrees.

f 20 Nm (177 lb-in) plus an additional 60 degrees

d Refer to the assembly procedure in this section.
