Ignition Coil-On-Plug

Ignition Coil-On-Plug





Removal and Installation

1. NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
Disconnect the 8 ignition coil-on-plug electrical connectors.


2. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
Remove the 8 bolts and the 8 ignition coil-on-plugs.

- To install, tighten to 6 Nm (53 lb-in).


3. Inspect the ignition coil-on-plug seals for rips, nicks or tears. Remove and discard any damaged ignition coil-on-plug seals.
- To install, slide the new ignition coil-on-plug seal onto the ignition coil-on-plug until it is fully seated at the top of the ignition coil-on-plug.






4. NOTE: Verify that the ignition coil-on-plug spring is correctly located inside the ignition coil-on-plug boot and that there is no damage to the tip of the boot.
To install, reverse the removal procedure.

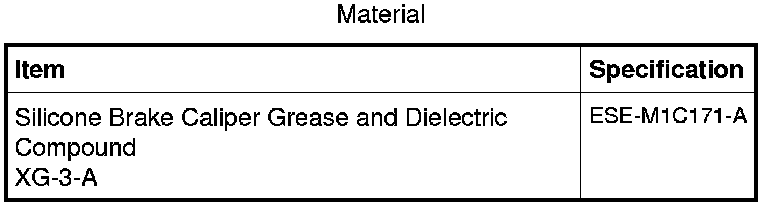

- Apply a small amount of dielectric grease to the inside of the ignition coil-on-plug boots before attaching to the spark plugs.
