In-Dash Computer

In-Dash Computer

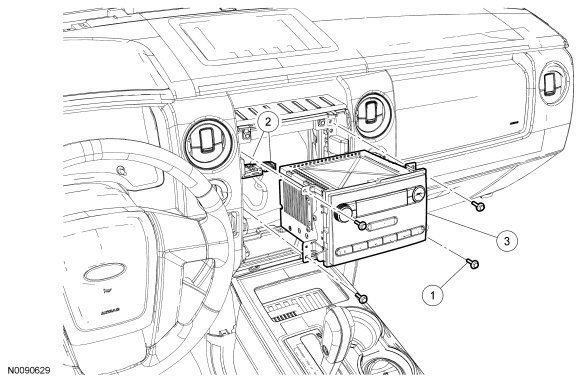

NOTE: The AM/FM Audio Front Control Module (ACM) is shown in the illustration. The in-dash computer is similar, and mounts in the same physical location.









Removal and Installation

1. Remove the instrument panel finish panel - center lower.

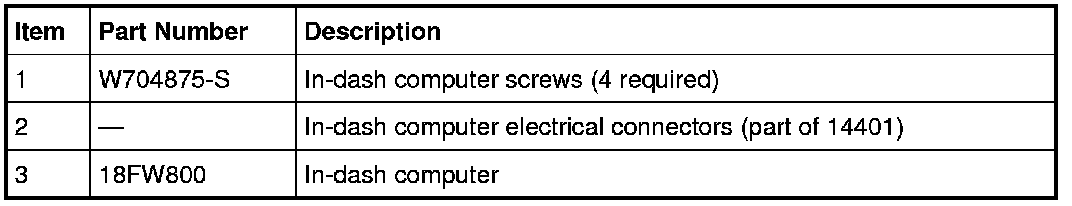

2. Remove the 4 screws and the in-dash computer.
- Disconnect the electrical connectors.


3. NOTICE: Make sure the modem-antenna cable is routed to allow enough clearance for the in-dash computer. Failure to follow this instruction may result in damage to the modem-antenna cable.
To install, reverse the removal procedure.
