Ignition Coil-On-Plug

Ignition Coil-On-Plug





Removal and Installation

1. Remove the Air Cleaner (ACL) outlet pipe.

2. Remove the intake air resonator.

3. Disconnect the 8 ignition wires.

4. Disconnect the 8 ignition coil-on-plug electrical connectors.

5. Remove the 8 ignition coil-on-plug bolts.
- To install, tighten to 10 Nm (89 lb-in).


6. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
Remove the 8 ignition coil-on-plugs.


7. NOTE: Verify that the coil-on-plug spring is correctly located inside the ignition coil-on-plug boot and that there is no damage to the tip of the boot.
To install, reverse the removal procedure.

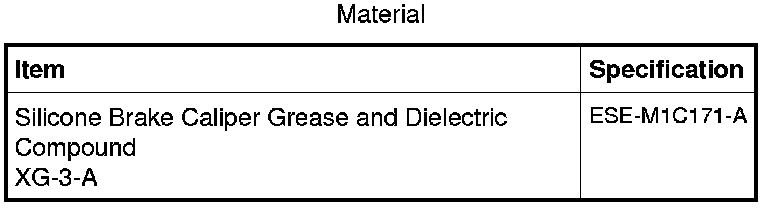

- Apply a light coat of dielectric compound to the inside of the coil-on-plug boots.
