Alignment Specifications

ALIGNMENT SPECIFICATIONS

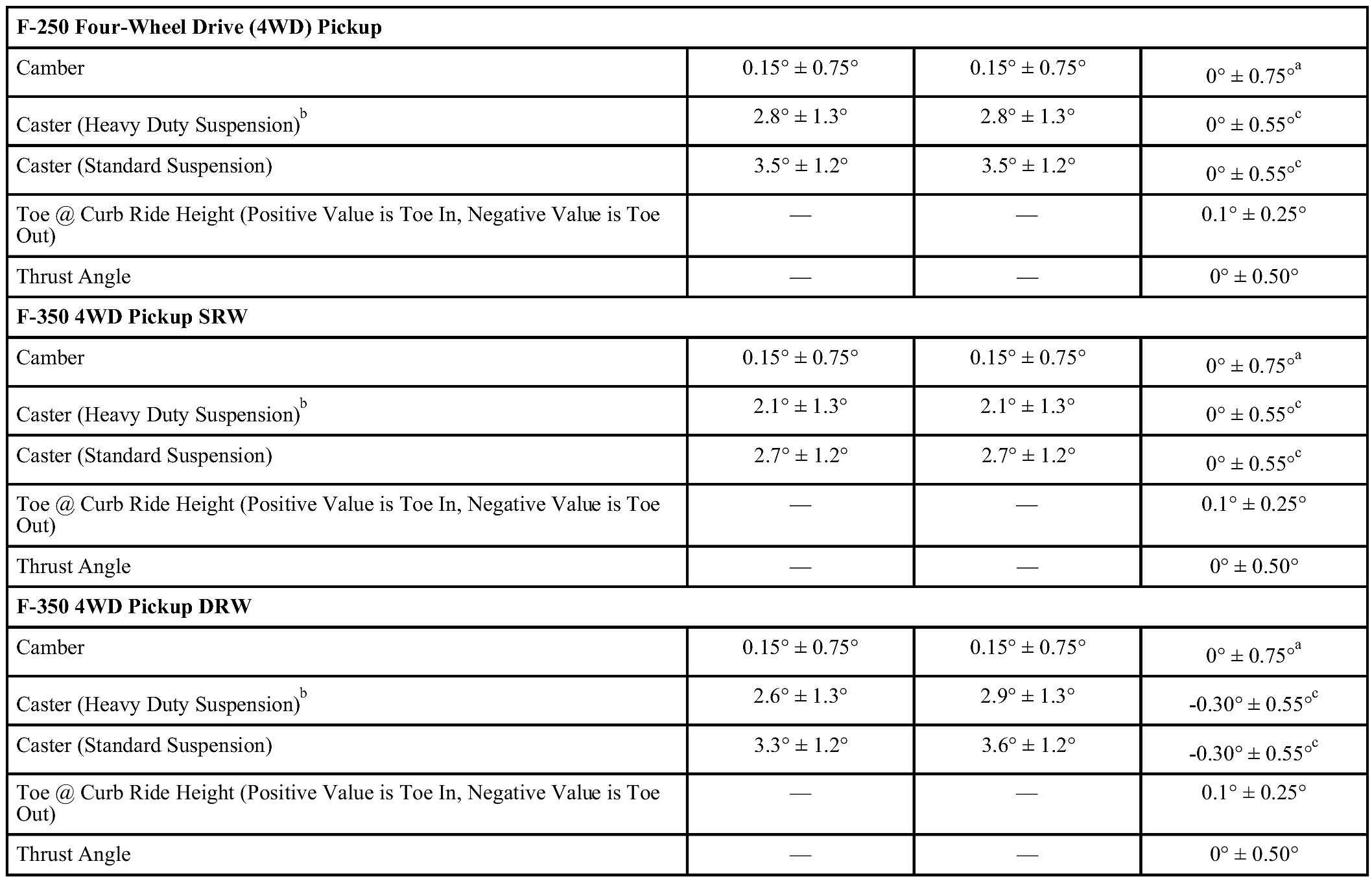

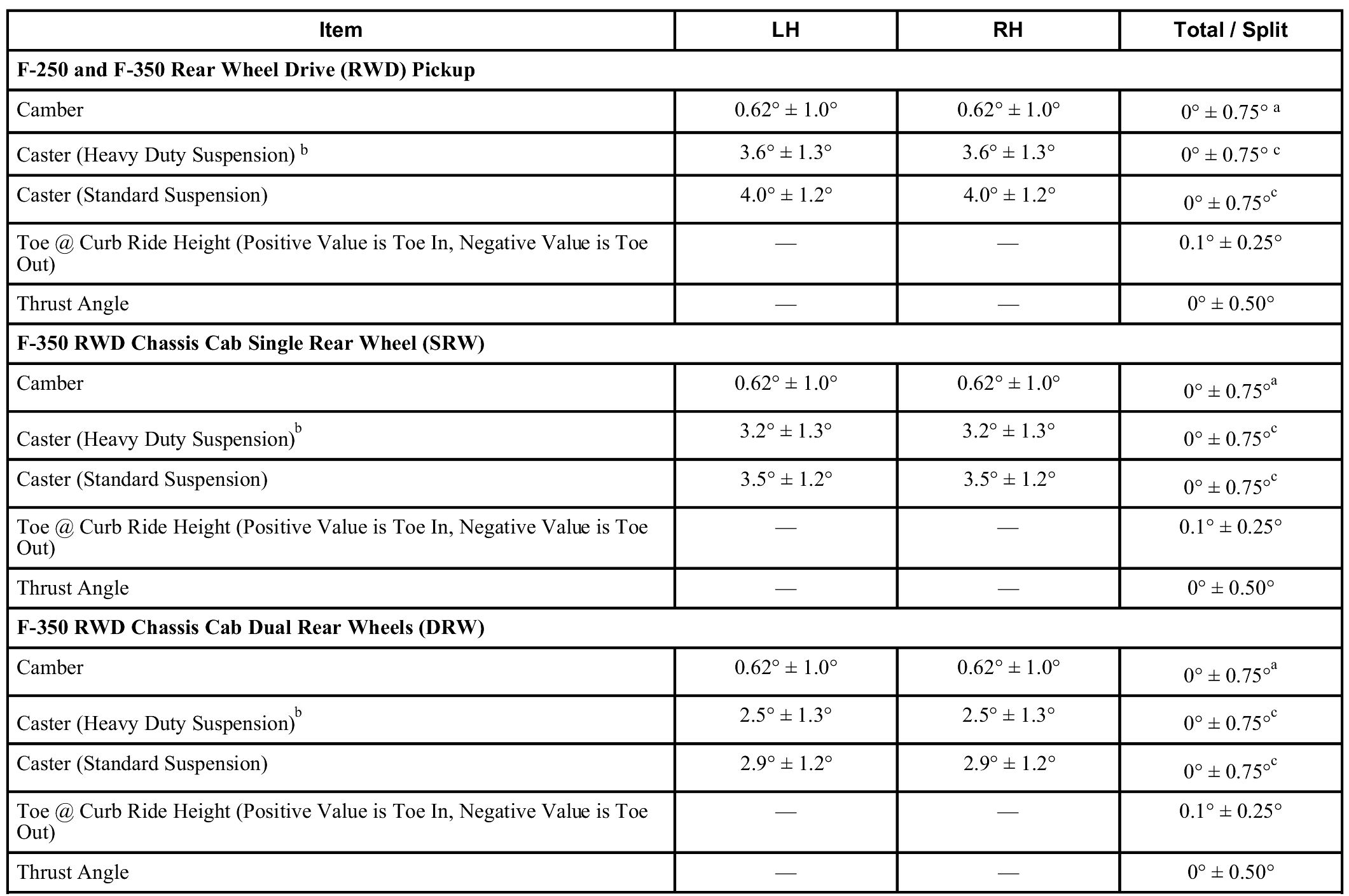

Alignment Specifications (Part 1 Of 3):

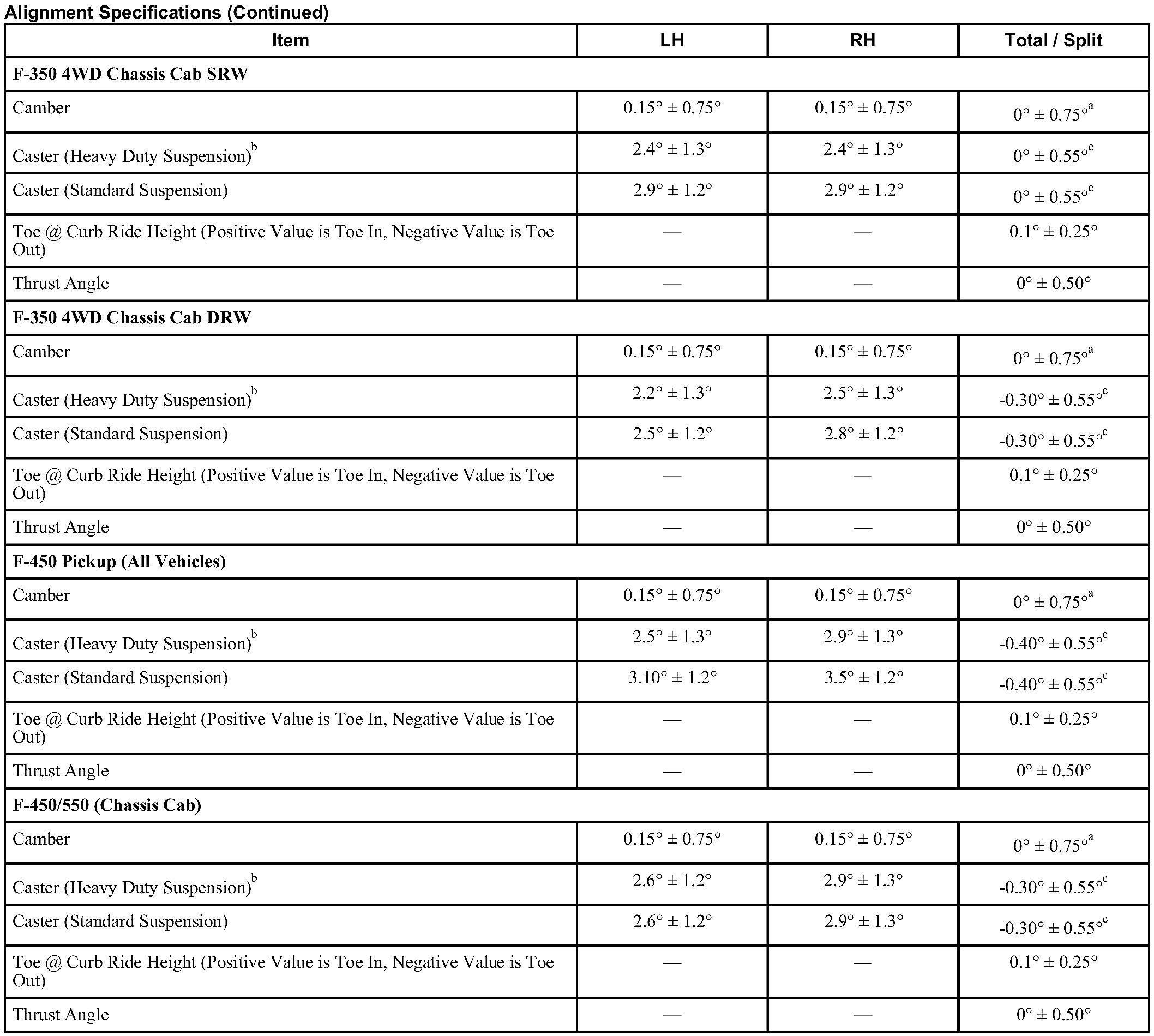

Alignment Specifications (Part 2 Of 3):

Alignment Specifications (Part 3 Of 3):

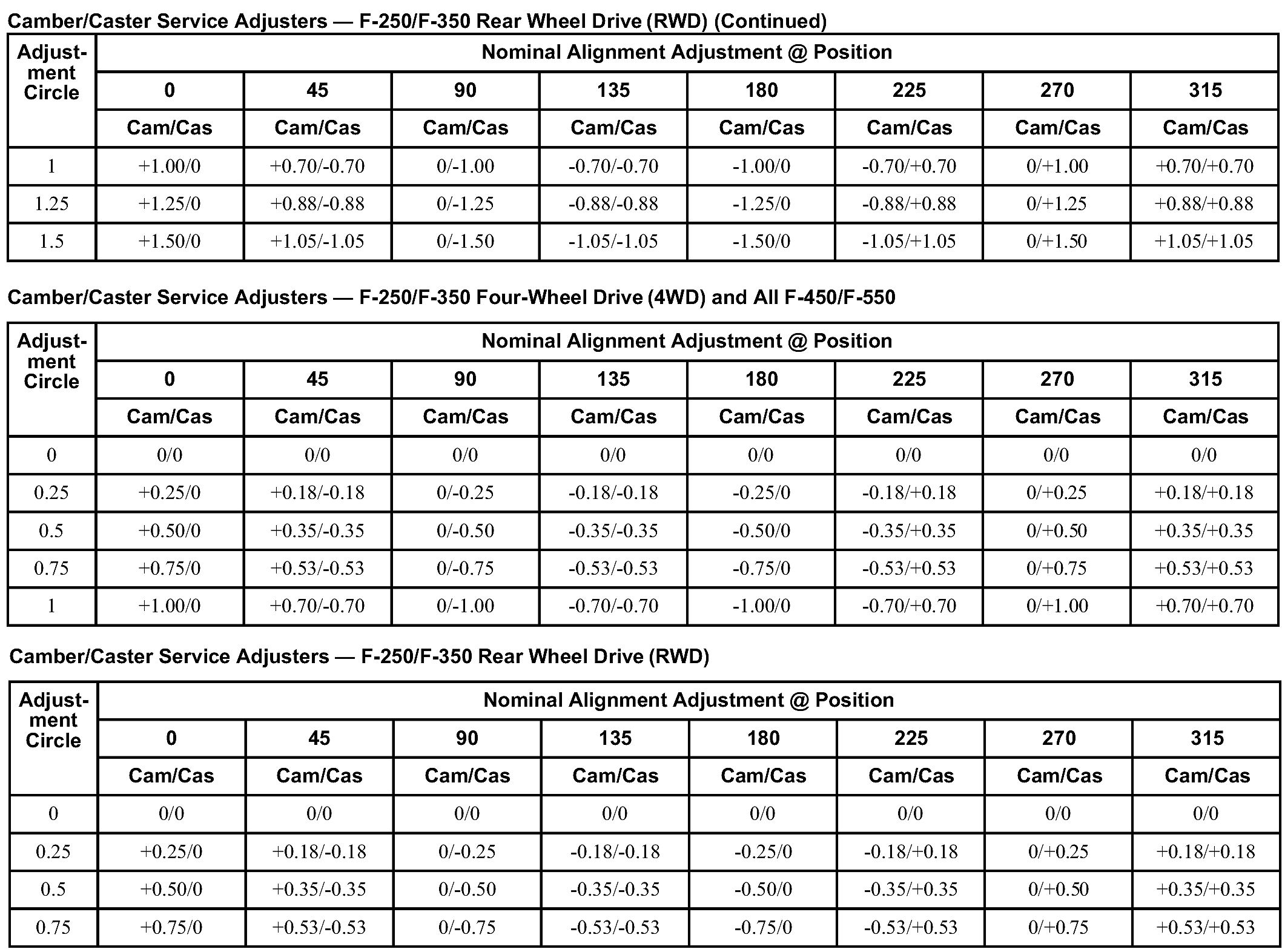

Camber/Caster Service Adjusters:

a Camber Total/Split = LH Camber - RH Camber
b Heavy duty suspension include vehicles equipped with the following equipment group packages: Heavy Duty, Extra Heavy Duty, Camper, Snowplow, Ambulance
c Caster Total/Split = LH Caster - RH Caster
