General Specifications

General Specifications

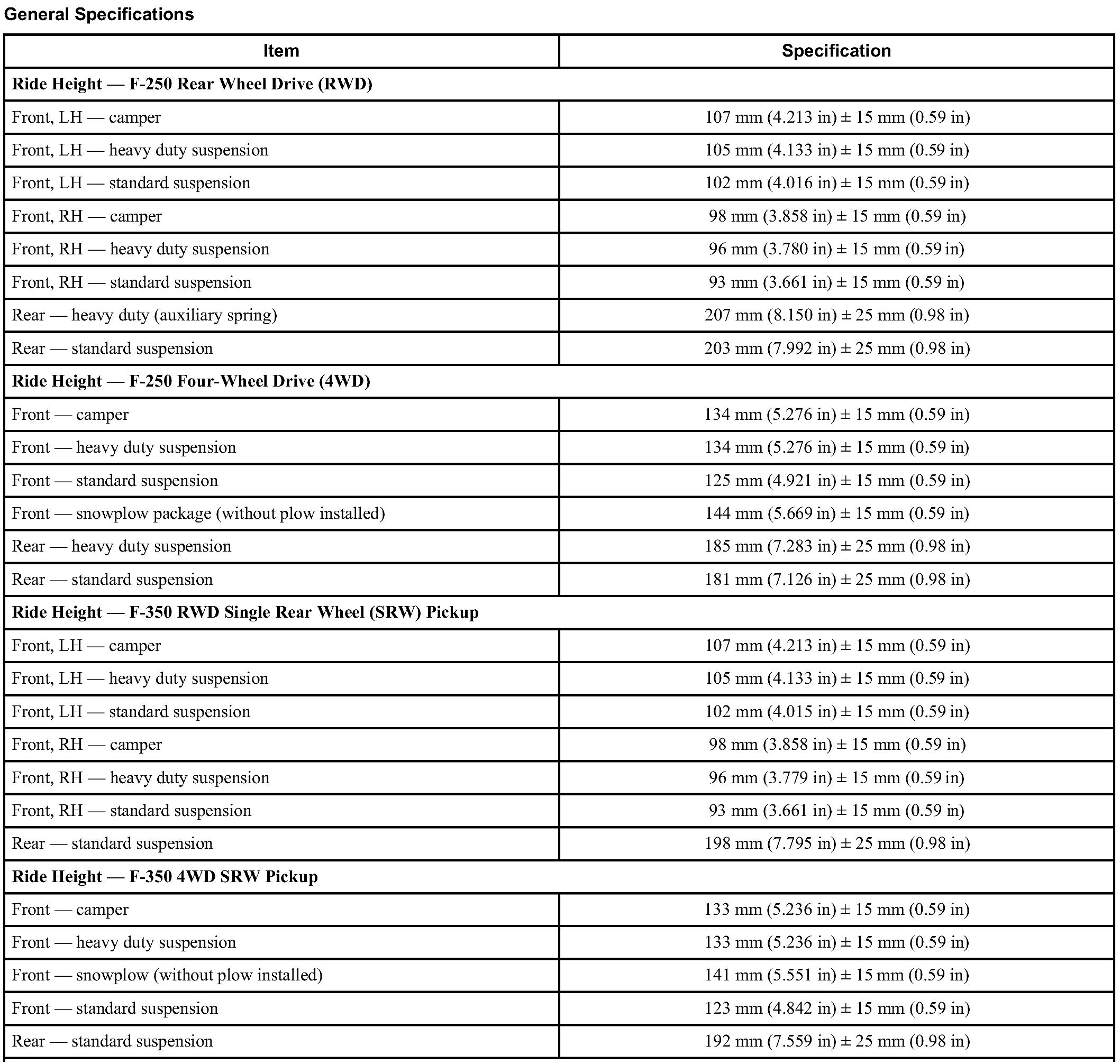

Ride Height (Part 1 Of 5):

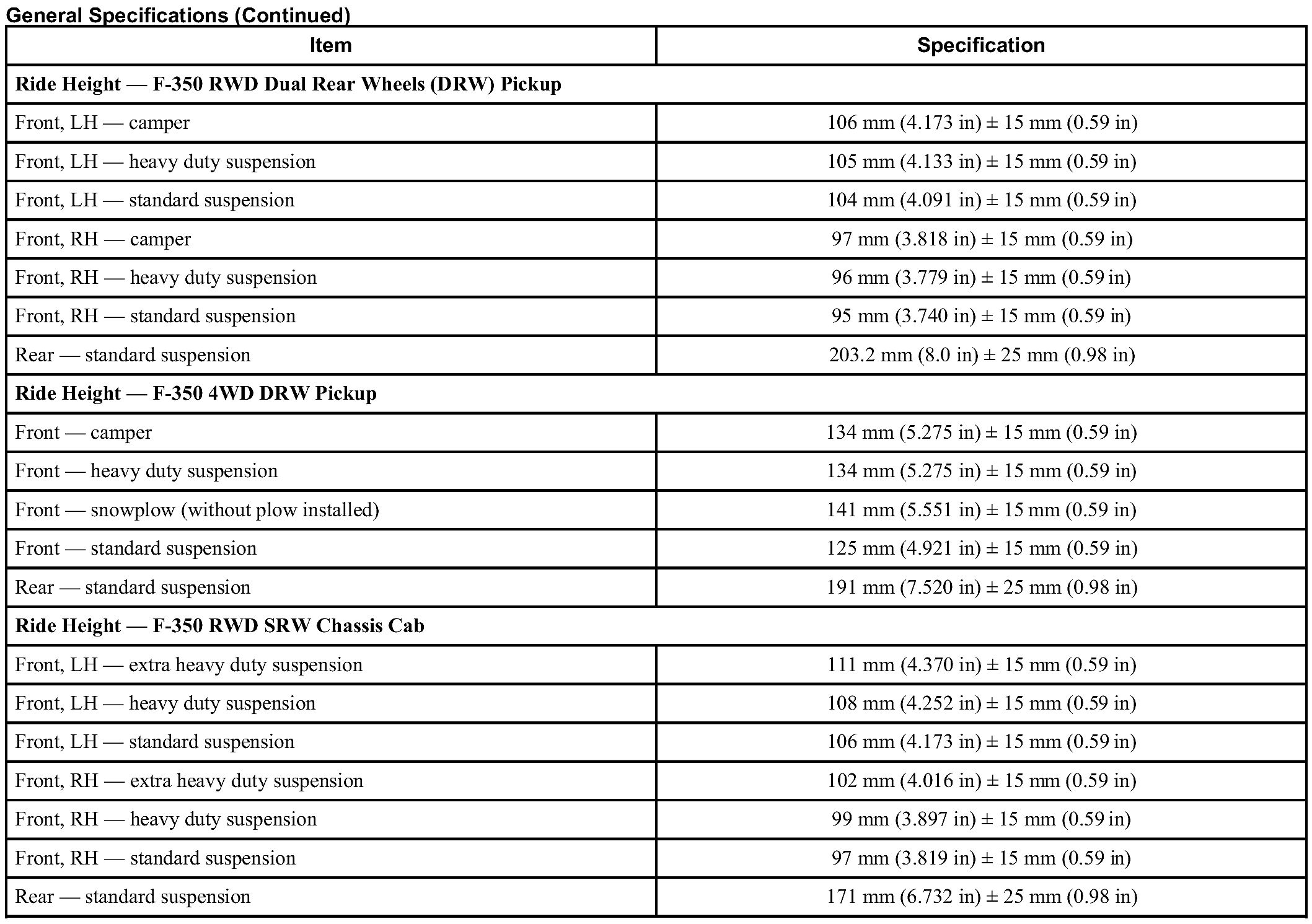

Ride Height (Part 2 Of 5):

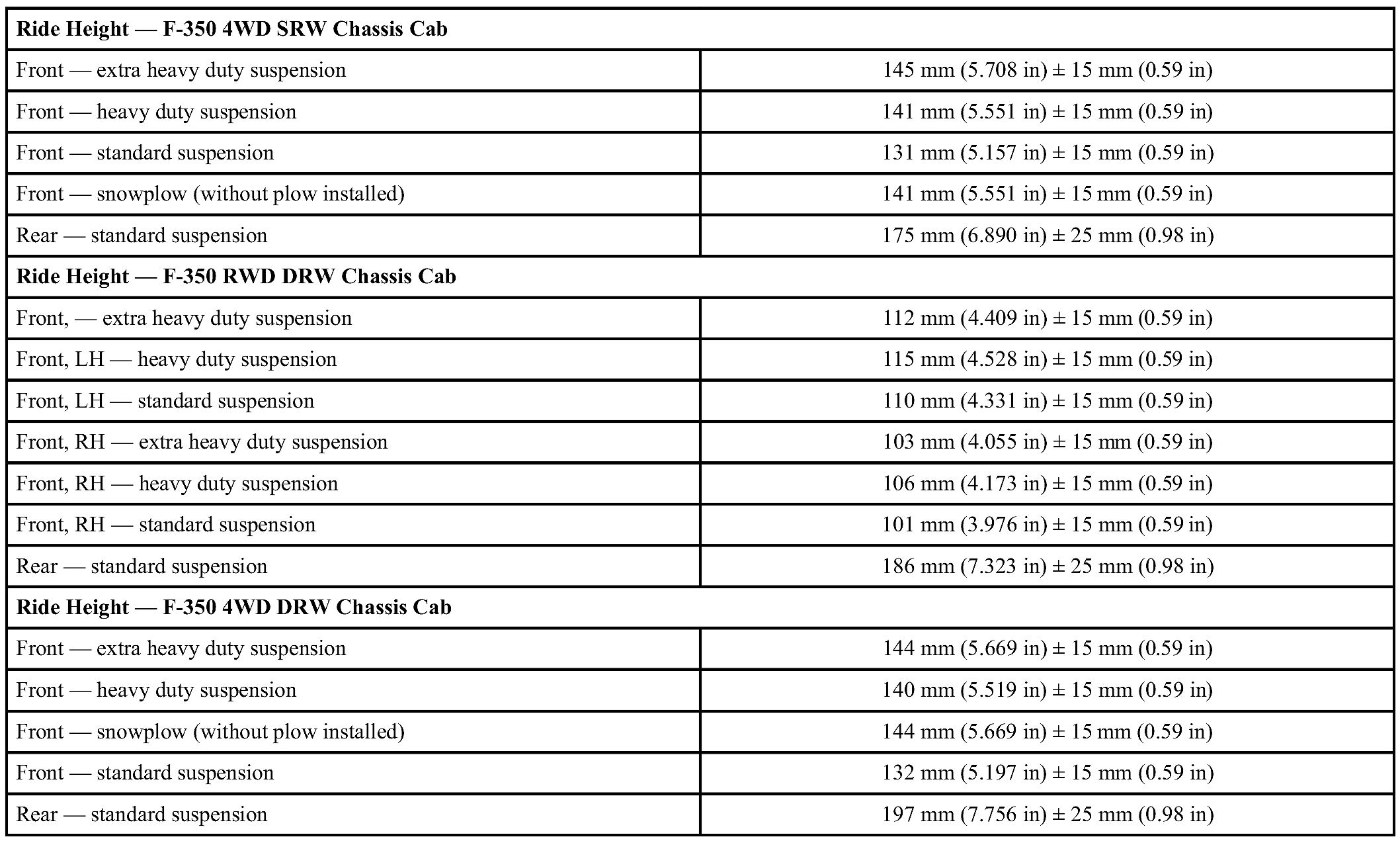

Ride Height (Part 3 Of 5):

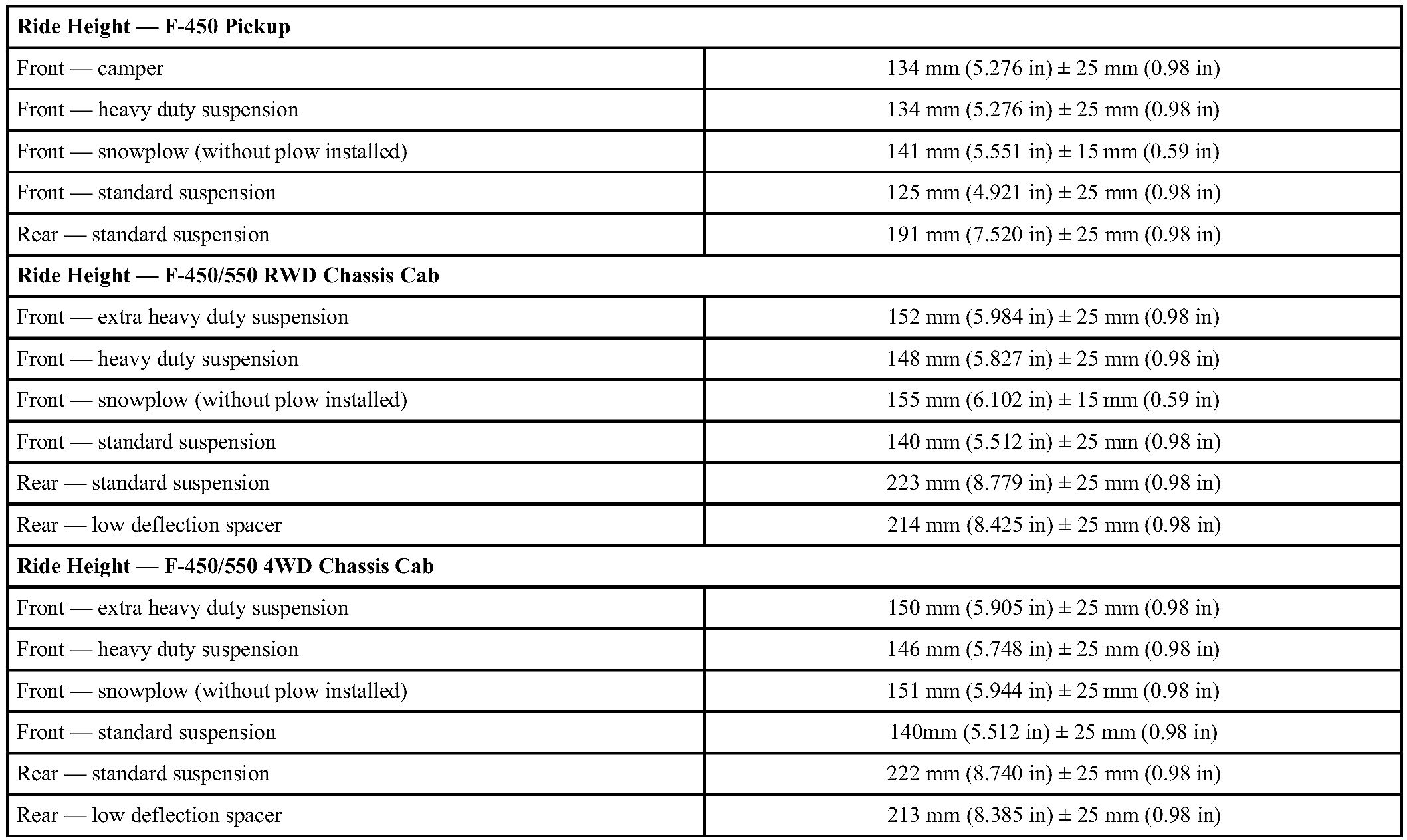

Ride Height (Part 4 Of 5):

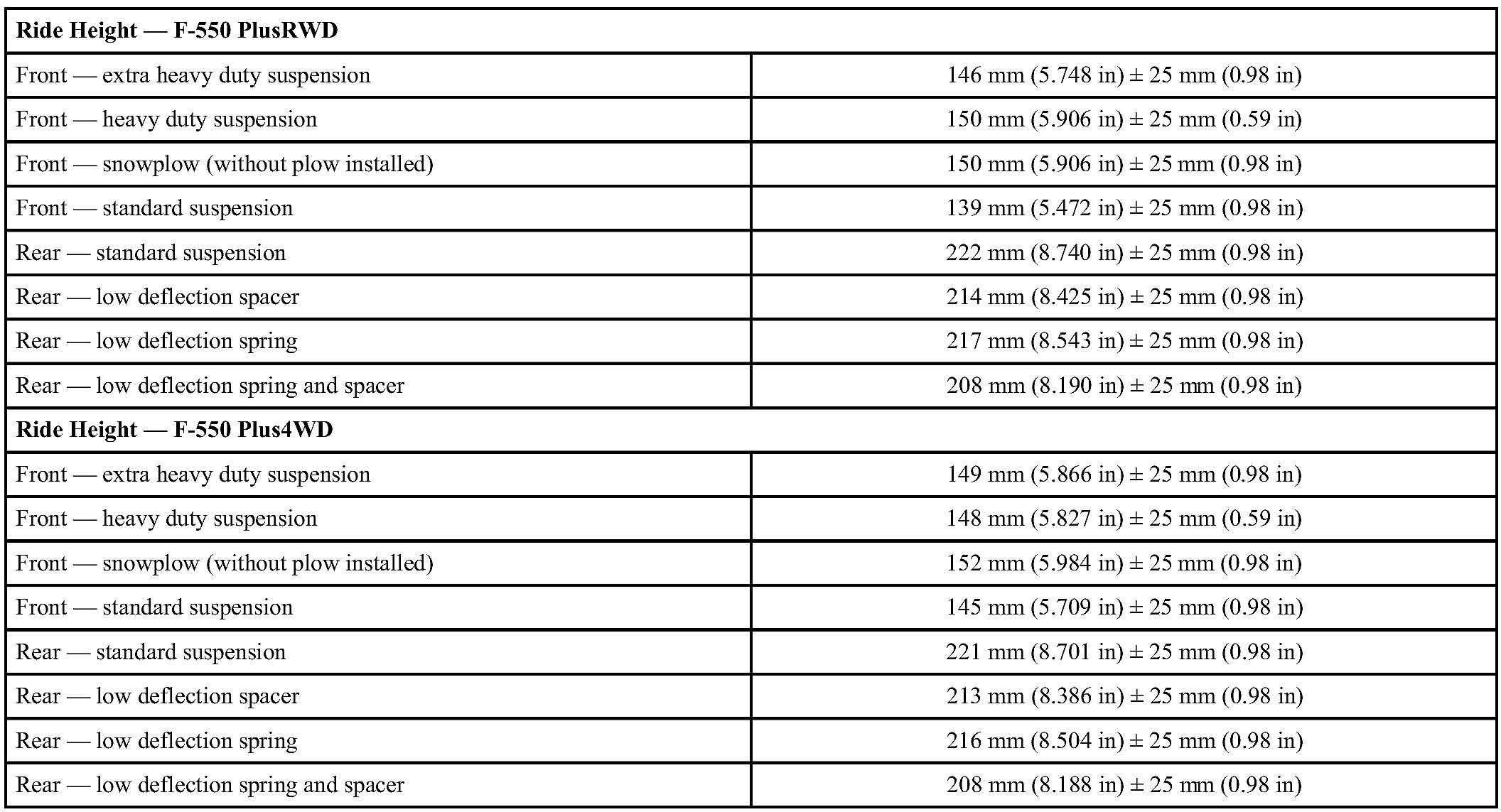

Ride Height (Part 5 Of 5):

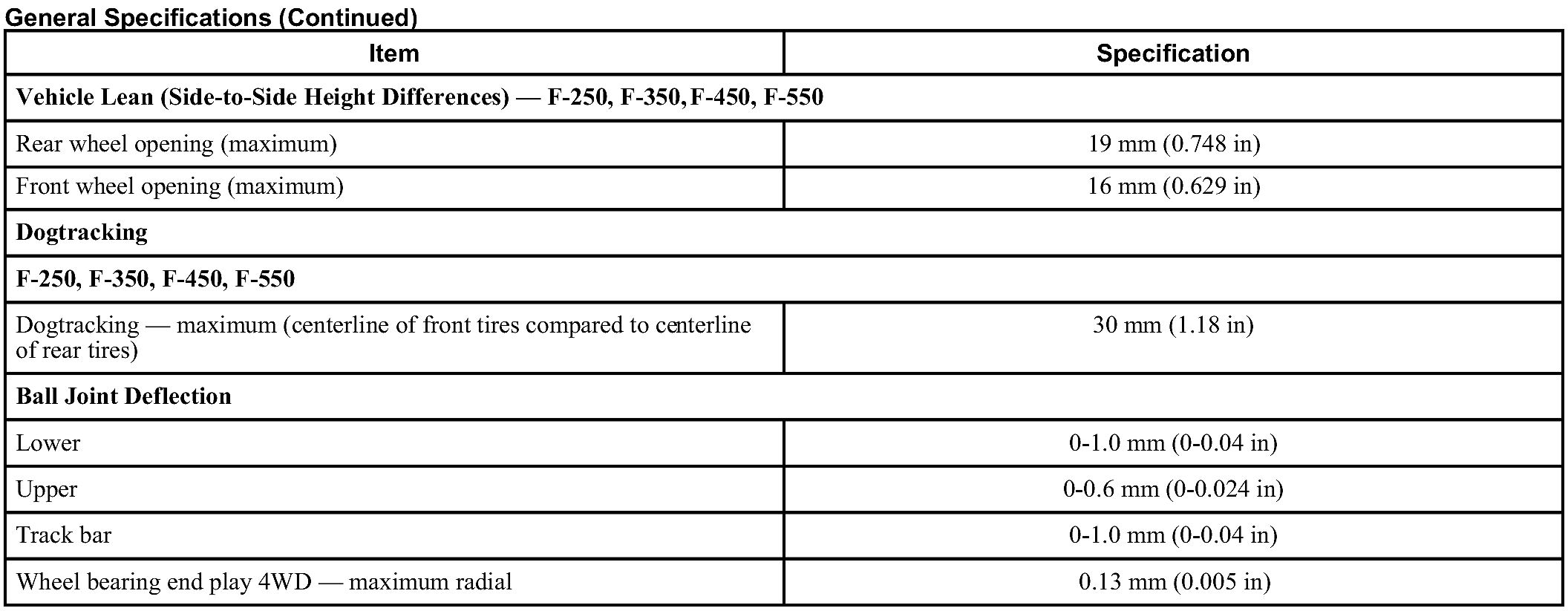

Vehicle Lean, Dogtracking, Ball Joint Deflection:

Measurements listed at curb load. Curb load is defined as "full service fluids, full fuel tank(s), no passengers and no cargo".
