Global Positioning System Module: Service and Repair

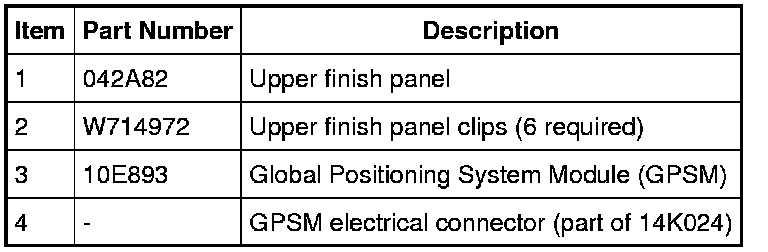

Global Positioning System Module (GPSM)









Removal and Installation

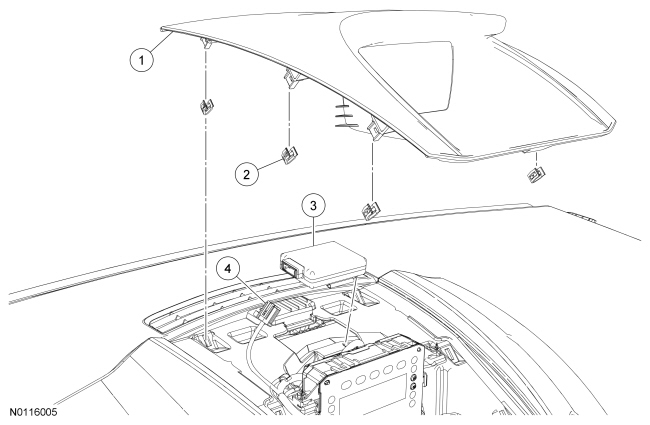

1. Remove the instrument panel upper finish panel. For additional information, refer to Instrument Panel and Console Instrument Panel Finish Panel - Upper.

2. Slide the GPSM and bracket rearward and remove.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
