Wiper Switch: Service and Repair

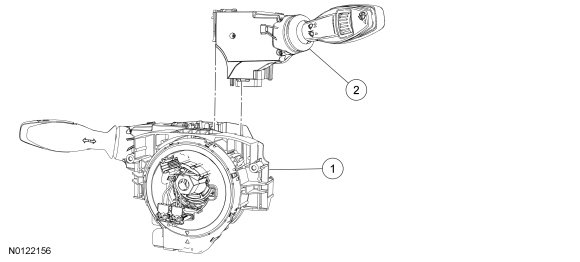

Wiper/Washer Switch









Removal and Installation

1. Remove the steering column shrouds.

2. Remove the wiper/washer switch.
1. Disconnect the electrical connector.

2. Release the wiper/washer switch retaining tab.

3. Lift upward and remove the wiper/washer switch.






3. To install, reverse the removal procedure.
