Battery Cables - Exploded View

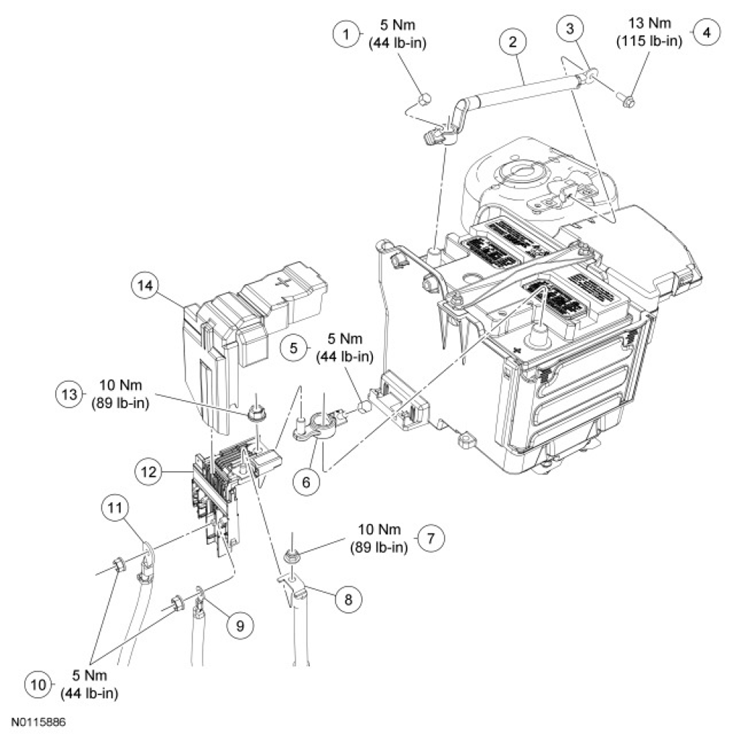

Fig 1: Exploded View Of Battery Cables With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Battery ground cable terminal nut (part of 14301)
2	14301	Battery ground cable
3	-	Battery ground cable body terminal (part of 14301)
4	W505253	Battery ground cable body terminal bolt
5	-	Battery positive terminal nut (part of 14450)
6	14450	Battery positive terminal
7	W520101	Engine harness wire terminal-to-high current battery junction box terminal nut
8	-	Engine harness wire terminal (part of 12A522)
9	-	Engine compartment harness wire terminal (part of 14K012)
10	W705790	Engine compartment harness wire terminal-to-high current battery junction box side terminal nuts (2 required)
11	-	Engine compartment harness wire terminal (part of 14K012)
12	67010	High current battery junction box
13	W711953	High current battery junction box-to-battery positive terminal nut
14	14A003	High current battery junction box cover

Refer to the appropriate procedures and/or exploded views in this service information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
