Selector Plate: Assembly

  1. Install the selector mechanism.
    1. Selector plate.
    2. Fifth and reverse gear selector rod guide sleeve.
    3. Reverse gear selector lever.
    4. Selector shift shaft.
    5. Fifth and reverse gear selector rod.
    Fig 1: Identifying Selector Mechanism Related Components
    G07980094Courtesy of FORD MOTOR CO.
  2. Install the 2 selector plate bolts.
    • Tighten to 22 Nm (16 lb-ft).

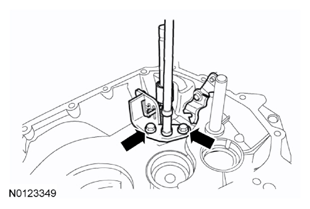

Fig 2: Locating Selector Plate Bolts
G07980092Courtesy of FORD MOTOR CO.
