HVAC Control Components

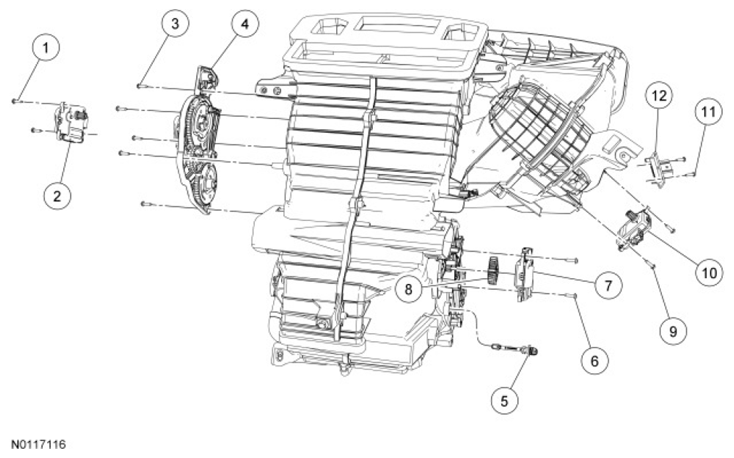

Fig 1: Exploded View Of HVAC Control Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W506945	Airflow mode door actuator screw (2 required)
2	19E616	Airflow mode door actuator
3	W506945	Airflow mode door actuating assembly screw (5 required)
4	19788	Airflow mode door actuating assembly
5	19C734	Evaporator discharge air temperature sensor
6	W506945	Temperature blend door actuator screw (2 required)
7	-	Temperature blend door actuator (part of 19788)
8	-	Temperature blend door actuator cam (part of 19788)
9	W506945	Air inlet mode door actuator screw (2 required)
10	19E616	Air inlet mode door actuator
11	W506945	Blower motor resistor screw (2 required)
12	18591	Blower motor resistor

Refer to the appropriate procedures and/or exploded views in this service information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
