Restraints Control Module (RCM): Notes

SPECIAL TOOLS

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS)
software with appropriate hardware, or equivalent scan tool

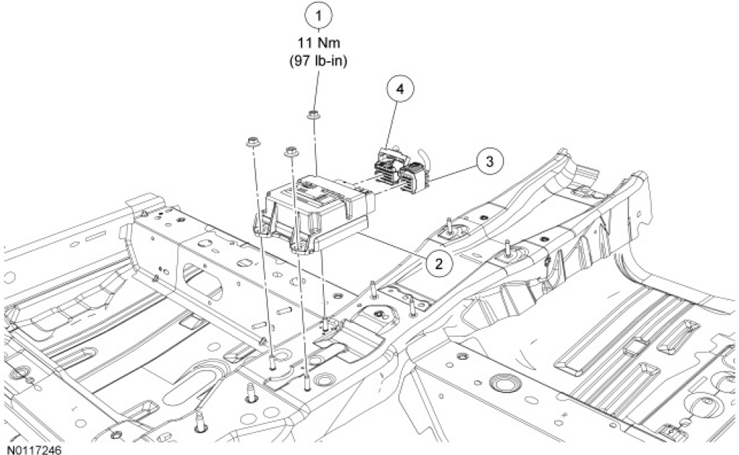

Fig 1: Restraints Control Module Related Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707142	Restraints Control Module (RCM) nuts (3 required)
2	14B321	RCM
3	-	RCM small electrical connector (part of 14K024)
4	-	RCM large electrical connector (part of 14A005)
