Body Control Module (BCM): Notes

SPECIAL TOOLS

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

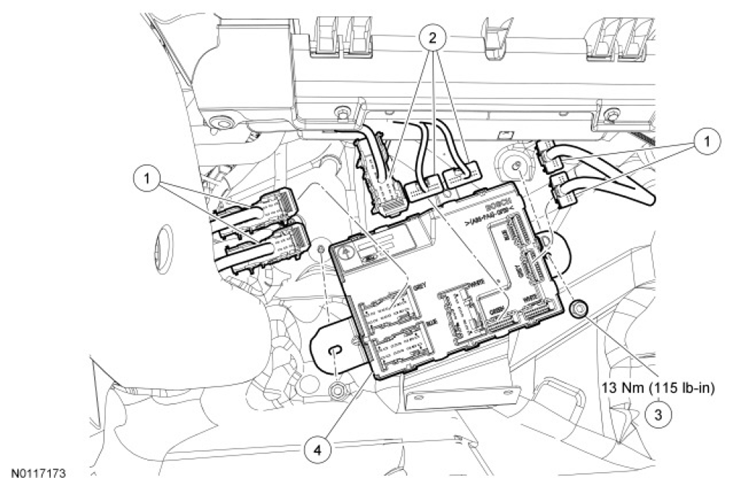

Fig 1: Body Control Module (BCM) Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Electrical connectors (part of 14A005)
2	-	Electrical connectors (part of 14K024)
3	W520412-S2	Body Control Module (BCM) nut (2 required)
4	15K600	BCM
