Input Shaft: Disassembly

  1. Using the special tools, remove and discard the bearing.

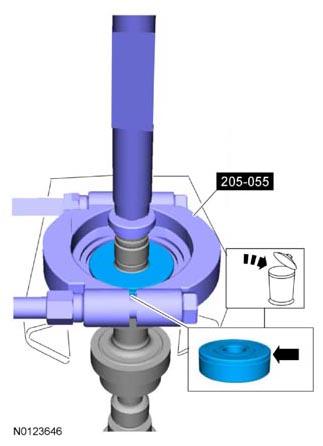

    Fig 1: Removing Bearing Using Special Tools
    G07980098Courtesy of FORD MOTOR CO.
  2. Using a suitable tool, remove and discard the bearing.

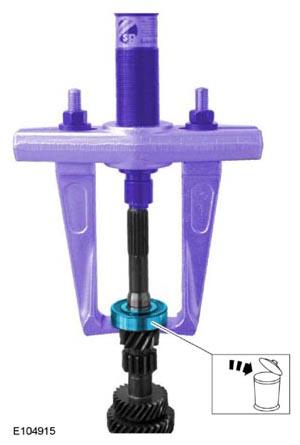

Fig 2: Removing Bearing Using Suitable Tool
G07980099Courtesy of FORD MOTOR CO.
