Driver Seat Module (DSM): Notes

SPECIAL TOOLS

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

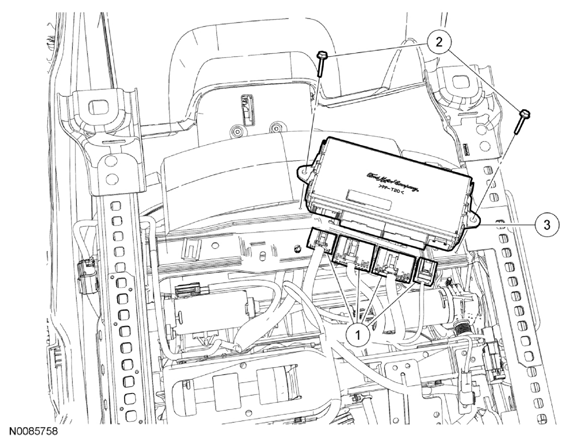

Fig 1: Identifying Driver Seat Module, Bolts And Electrical Connectors

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Driver Seat Module (DSM) electrical connectors (part of 14D231)
2	-	DSM bolts (2 required)
3	14C708	DSM
