Flexplate Inspection

  1. Inspect the flexplate for:
    1. any cracks.
    2. worn ring gear teeth.
    3. chipped or cracked ring gear teeth.

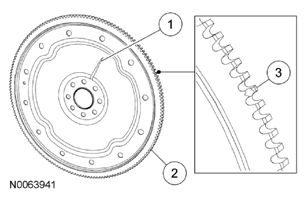

      Fig 1: Inspecting Flexplate For Cracks, Worn Ring Gear Teeth And Chipped Or Cracked Ring Gear Teeth
      G08042380Courtesy of FORD MOTOR CO.
