Transmission Shift Cable

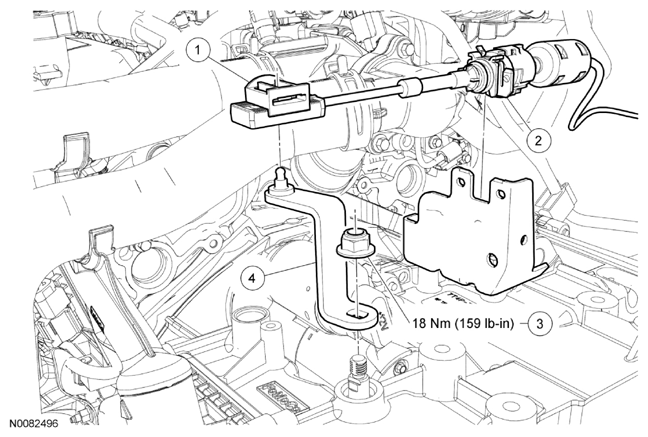

Fig 1: Transmission Shift Cable Related Replacement Components With Torque Specifications
G08042628Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7E395 Transmission shift cable adjustment lock
2 7H181 Transmission shift cable rotating slide snap
3 W520103 Transmission manual control lever nut
4 7A257 Transmission manual control lever
