Exploded View: Assembly

Install the differential ring gear.
1. Place the ring gear on the differential assembly.
2. Hand-start 4 new ring gear bolts to align the holes in the ring gear and the differential case.
3. Evenly tighten the 4 bolts to seat the ring gear onto the differential case.
Fig 1: Location of Differential Case Mounting Bolts
Courtesy of FORD MOTOR CO.
Install the remaining 12 new differential ring gear bolts and tighten in 2 stages.
- Stage 1: Tighten to 33 Nm (24 lb-in).
- Stage 2: Tighten an additional 60 degrees.
Fig 2: Location of Differential Ring Gear Bolt
Courtesy of FORD MOTOR CO.
Using Differential Bearing Installer and Guide 307-587 (307-587/1 and 307-587/2), press new differential carrier bearings on the differential assembly.

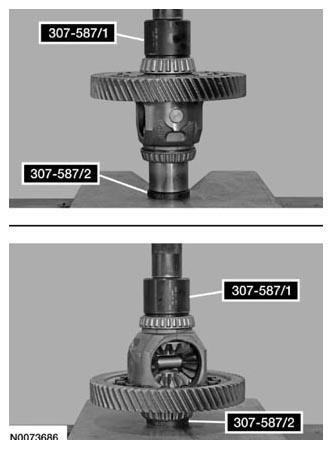

Fig 3: Pressing Differential Carrier Bearings On Differential Assembly Using Differential Bearing Installer And Guide
Courtesy of FORD MOTOR CO.
Select a new differential shim. For additional information, refer to Differential Shim Selection .
