Exploded View: Assembly

  1. Install the park pawl wheel on the transfer shaft.

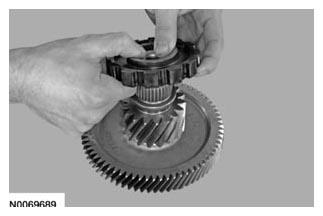

    Fig 1: Installing Park Pawl Wheel On Transfer Shaft
    G08049016Courtesy of FORD MOTOR CO.
  2. Using the Differential Bearing Installer and Guide 307-587 (307-587/2 and 307-587/3) and a press, install new transfer shaft bearings on the transfer shaft assembly.

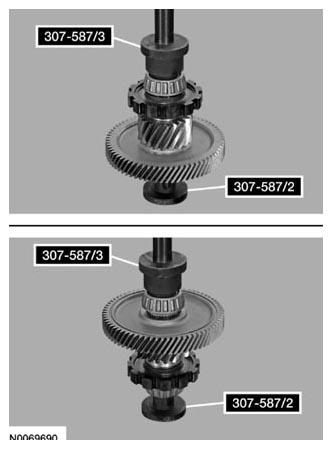

    Fig 2: Installing Transfer Shaft Bearings On Transfer Shaft Assembly Using Differential Bearing Installer And Guide
    G08049017Courtesy of FORD MOTOR CO.
  3. Select a new transfer shaft shim. For additional information, refer to Differential Shim Selection  .
