Main Control Valve Body: Installation

    NOTE: If cleaning the main control assembly or inspecting the valves, refer to Main Control - Overhaul . If installing a new main control assembly, continue with this procedure.
    NOTE: Make sure that the manual pin (part of the TR sensor) is correctly installed in the manual valve.

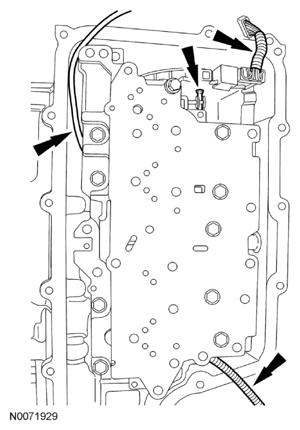

    Fig 1: Location of TSS, OSS And TR Sensor Wiring Harnesses
    G08042897Courtesy of FORD MOTOR CO.
  1. Position the TSS, OSS and TR sensor wiring harnesses aside and install the main control valve body.
  2. Inspect the manual pin to make sure it is correctly installed in the manual valve. If not, pull the valve body off the transaxle case. Correctly install the manual pin in the manual valve and position the valve body in place.

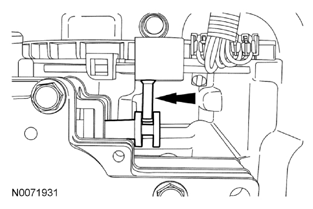

    Fig 2: Location of Manual Valve Pin
    G08042898Courtesy of FORD MOTOR CO.
  3. Install the TR sensor detent spring and the 10 bolts. Tighten the valve body bolts in the sequence shown in illustration.
    • Tighten to 12 Nm (106 lb-in).

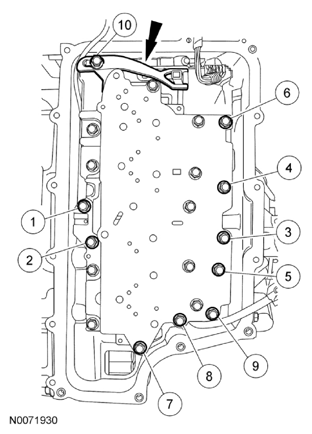

    Fig 3: Identifying Valve Body Bolts Tightening Sequence
    G08042899Courtesy of FORD MOTOR CO.
    4. NOTE: Do not handle the solenoid body in the leadframe area or by the screens of the solenoid body filter or damage to the solenoid body may occur.
    NOTE: Use care not to break the alignment tabs when installing the solenoid body filter. Damage to the transaxle will occur if the solenoid body is not correctly aligned.
    NOTE: Make sure that the filter passage areas are clean of foreign material before installing the filter. Damage to the transaxle will occur if the filter passages are not clean.
    Fig 4: Location of Solenoid Body Filter Assembly
    G08042900Courtesy of FORD MOTOR CO.
  4. Install a new solenoid body filter assembly by pushing it straight down on to the alignment tabs.
    5. NOTE: Make sure not to pinch the Turbine Shaft Speed (TSS), Output Shaft Speed (OSS) or Transmission Range (TR) sensor wiring harnesses when installing the solenoid body. Damage to the wiring harness will occur.
    NOTE: Install the different length bolts in the locations noted during disassembly.

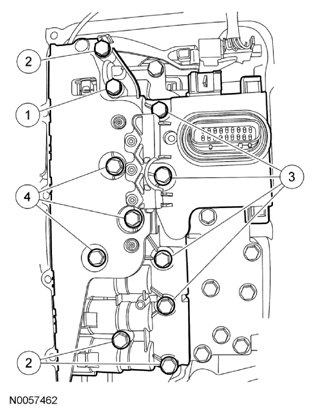

    Fig 5: Identifying Solenoid Body Bolts
    G08042901Courtesy of FORD MOTOR CO.
  5. Install the solenoid body and the 11 bolts.
    1. 42 mm (1.653 in) bolt
    2. 63 mm (2.48 in) bolts
    3. 80 mm (3.149 in) bolts
    4. 95 mm (3.74 in) bolts
  6. Tighten the solenoid body bolts in the sequence shown in illustration.
    • Tighten to 12 Nm (106 lb-in).

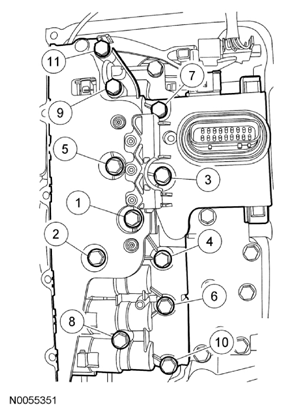

    Fig 6: Identifying Solenoid Body Bolts Tightening Sequence
    G08042902Courtesy of FORD MOTOR CO.
  7. Route the OSS sensor wiring harness and connect the electrical connector.
    Fig 7: Location of OSS Sensor Wiring Harness And Electrical Connector
    G08042903Courtesy of FORD MOTOR CO.
  8. Connect the TR sensor electrical connector.
    1. Connect the electrical connector.
    2. Slide the locking tab over.
    Fig 8: Identifying TR Sensor Electrical Connector And Locking Tab Cover
    G08042904Courtesy of FORD MOTOR CO.
  9. Connect the TSS sensor electrical connector.
    Fig 9: Location of TSS Sensor Electrical Connector
    G08042905Courtesy of FORD MOTOR CO.
  10. Install the main control cover.
