Climate Control System - Vehicles Built From: 05-March-2012, Vehicles With: Dual Automatic Temperature Control - Component Location: Notes

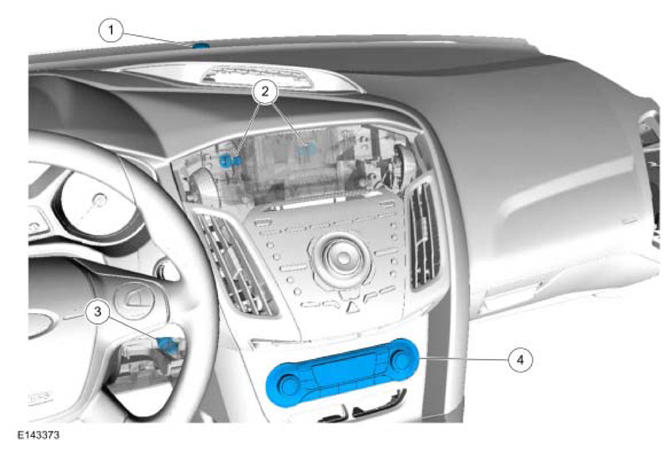

Fig 1: Identifying HVAC Module With Sunload And In-Vehicle Sensors

Courtesy of FORD MOTOR CO.

Item	Description
1	Sunload sensor
2	Center register air discharge temperature sensors
3	In-vehicle temperature sensor
4	HVAC module

Fig 2: Identifying Air Inlet Duct, Blower Motor, Evaporator And Heater Core Of Climate Control System

Courtesy of FORD MOTOR CO.

Item	Description
1	Air inlet duct
2	Blower motor
3	Evaporator
4	Heater core

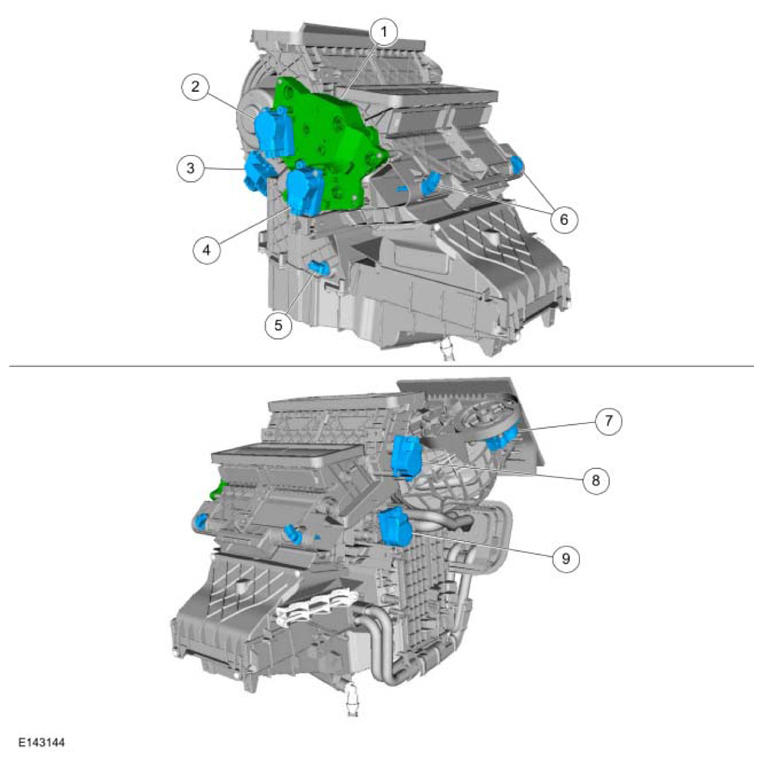

Fig 3: Identifying Actuating Assembly With Related Components

Courtesy of FORD MOTOR CO.

Item	Description
1	Actuating assembly
2	Footwell vent/duct blend door actuator
3	Blower motor speed control
4	Driver side temperature blend door actuator
5	Evaporator temperature sensor
6	Footwell air discharge temperature Sensor
7	Air inlet blend door actuator
8	Defrost vent/register blend door actuator
9	Passenger side temperature blend door actuator
