Climate Control System - Vehicles Built Up To: 05-March-2012, Vehicles With: Electronic Manual Temperature Control (EMTC) - Component Location: Notes
WARNING: This page is about a different variant/trim than selected.

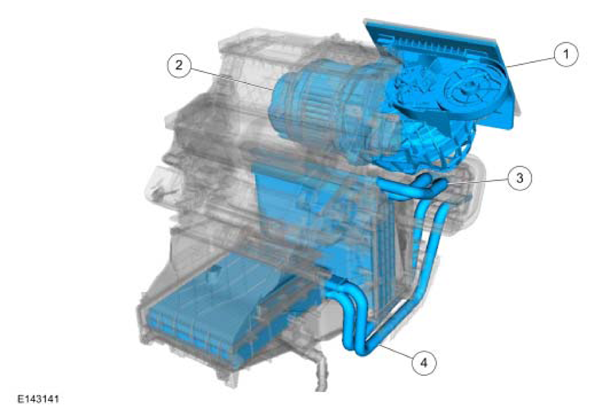

Fig 1: Identifying Air Inlet Duct, Blower Motor, Evaporator And Heater Core Of Climate Control System
| Item | Description |
|---|---|
| 1 | Air inlet duct |
| 2 | Blower motor |
| 3 | Evaporator |
| 4 | Heater core |

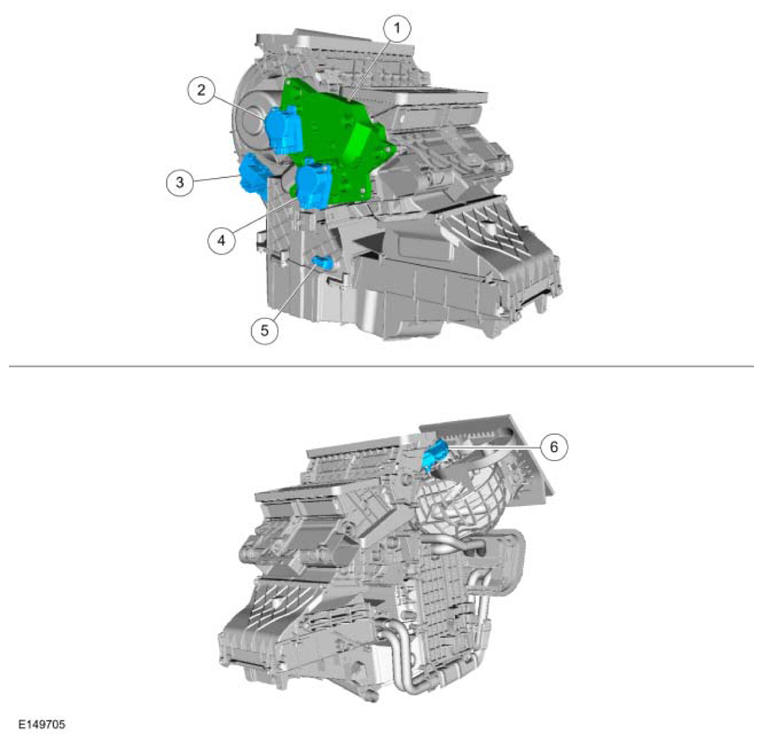

| Item | Description |
|---|---|
| 1 | Actuating assembly |
| 2 | Defrost vent/register/footwell blend door actuator |
| 3 | Blower motor speed control |
| 4 | Temperature blend door actuator |
| 5 | Evaporator discharge air temperature sensor |
| 6 | Air inlet blend door actuator |
