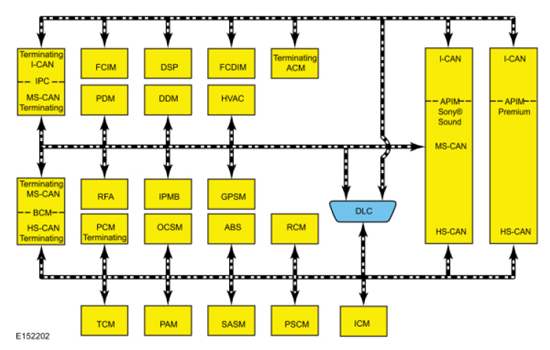

System Diagram
WARNING: This page is about a different variant/trim than selected.
MODULE NETWORK CHART
| Module Name | Network Type |
|---|---|
| APIM (if equipped) | HS-CAN |
| MS-CAN (Sony® Sound Only) | |
| I-CAN | |
| ABS module | HS-CAN |
| ACM | I-CAN |
| DSP (if equipped) | I-CAN |
| BCM | HS-CAN |
| MS-CAN | |
| DDM (if equipped) | MS-CAN |
| FCIM (if equipped) | I-CAN |
| FCDIM | I-CAN |
| GPSM (if equipped) | MS-CAN |
| HVAC module | MS-CAN |
| IPC | MS-CAN |
| I-CAN | |
| Information Center Module (ICM) (if equipped) | HS-CAN |
| Image Processing Module - B (IPM-B) (if equipped) | MS-CAN |
| OCSM | HS-CAN |
| Parking Aid Module (PAM) (if equipped) | HS-CAN |
| PSCM | HS-CAN |
| PCM | HS-CAN |
| PDM (if equipped) | MS-CAN |
| RFA module (if equipped) | MS-CAN |
| RCM | HS-CAN |
| SASM | HS-CAN |
| TCM (if equipped) | HS-CAN |
