Front Controls Interface Module (FCIM)

Front Controls Interface Module (FCIM)

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

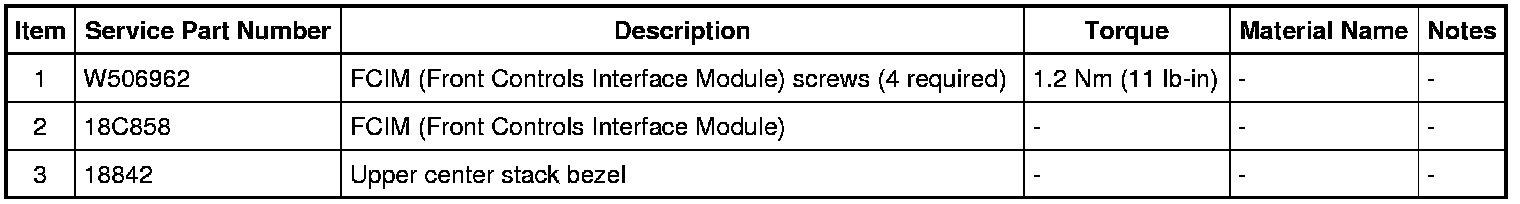

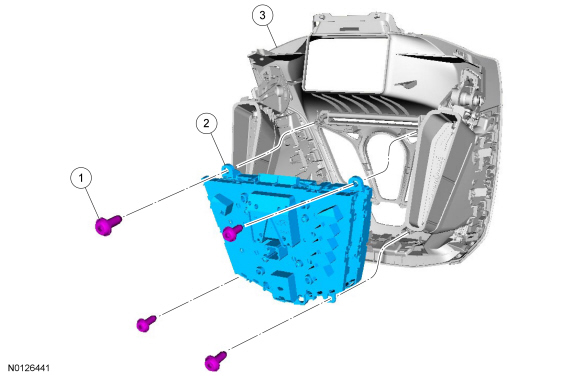

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

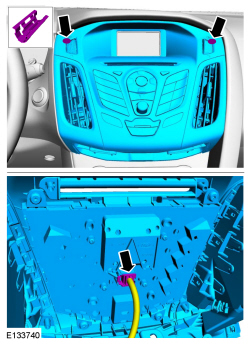

1.





2.





3. NOTE: This step is only necessary when installing a new component.

- 1.2 Nm (11 lb-in)





Installation

1. To install, reverse the removal procedure.
