Climate Control - EMTC

Blower Motor Speed Control

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

Removal

1. Remove the instrument panel. REFER to Instrument Panel .

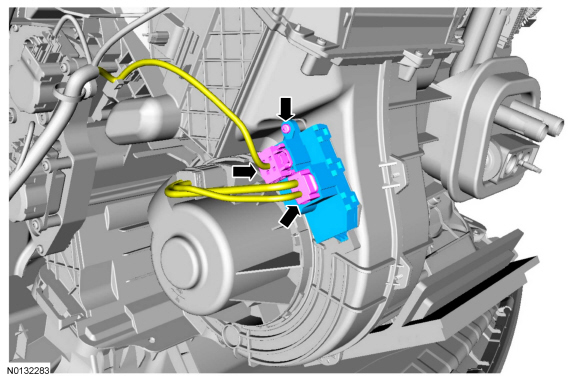

2. Disconnect the 2 electrical connectors, remove the retainer and blower motor speed control.





Installation

1. To install, reverse the removal procedure.
