Climate Control - DATC

Evaporator Core

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

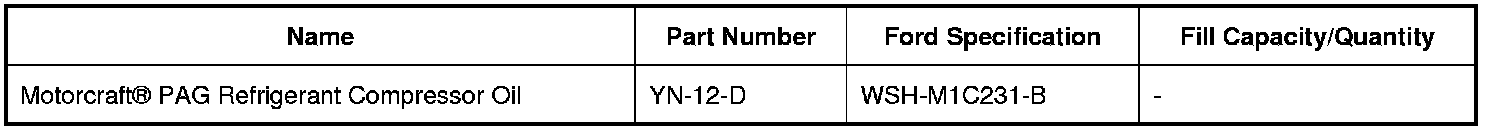

Material(s)

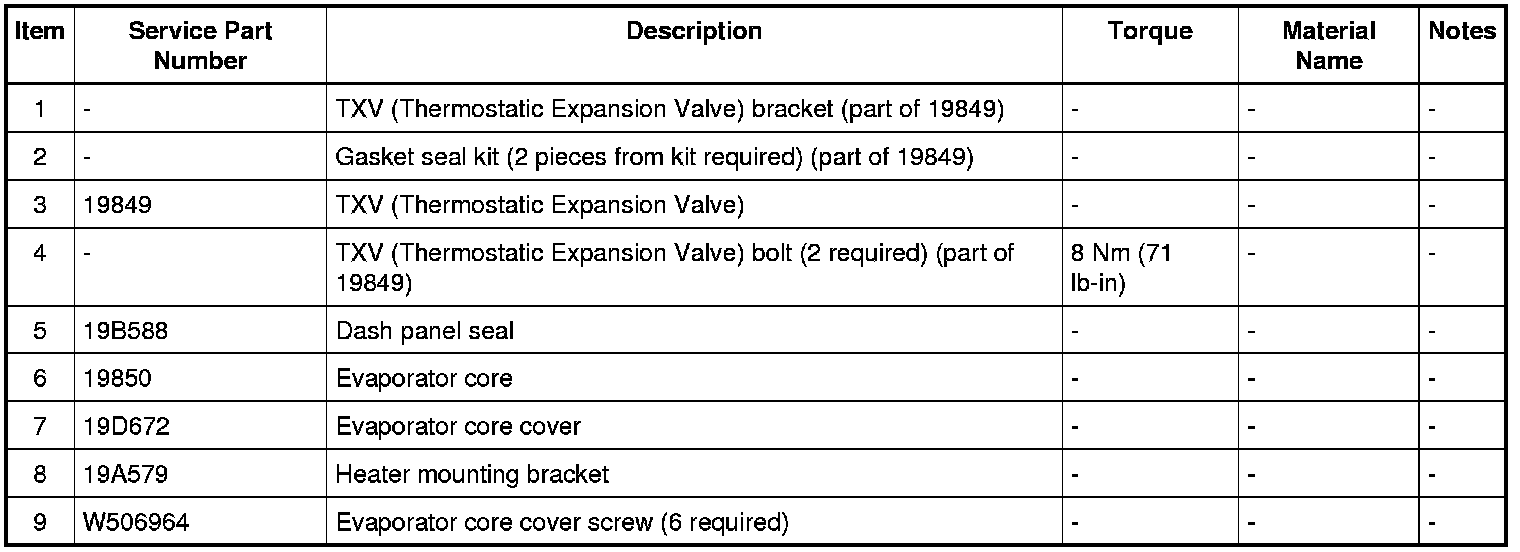

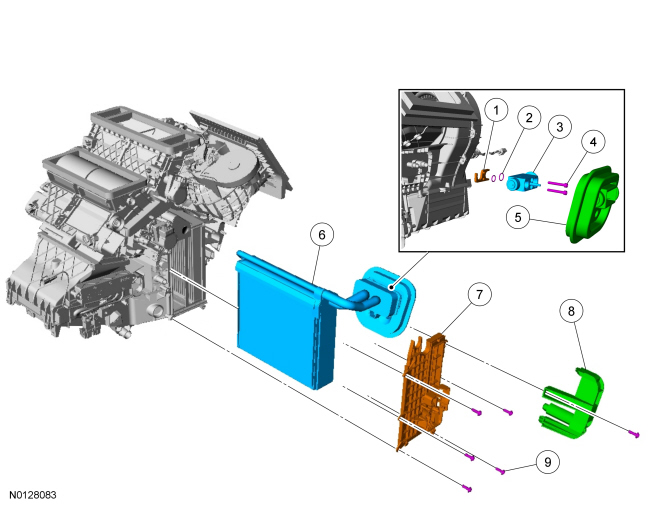

Exploded View










Removal

1. Remove the instrument panel. REFER to Instrument Panel .

2. Remove the dash panel seal. Remove the heater mounting bracket screw and the heater mounting bracket.

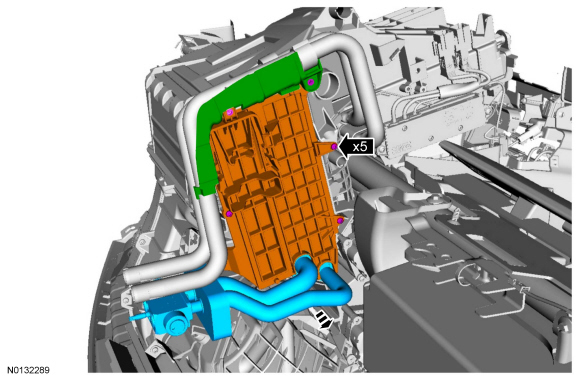

3. Remove the 5 evaporator core cover screws. Remove the heater tube cover, evaporator core cover and remove the evaporator core.





Installation

1. To install, reverse the removal procedure.
