Focus Titanium, 4D Hatchback, Standard Trans, Gas
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Wiper/Washer Systems
>>
Wiper System & Washer System - Except Electric
>>
Description and Operation
>>
Wipers and Washers - System Operation and Component Description
>>
System Operation
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

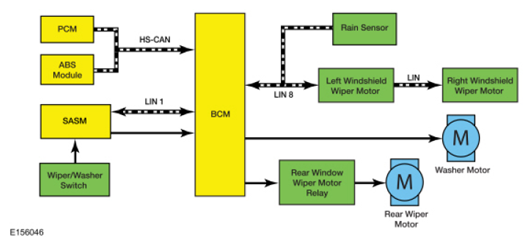

Fig 1: Wipers And Washers System Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
