PINPOINT TEST DK: Accelerator Pedal Position (APP) Sensor: Introduction
NOTE:
After clearing an APP sensor diagnostic trouble code (DTC) to verify a repair or an intermittent concern, apply the accelerator pedal before carrying out the self-test. Take 10 seconds to carry out a full sweep of the accelerator pedal from fully released to fully applied and back to fully released.
This pinpoint test is intended to diagnose the following:

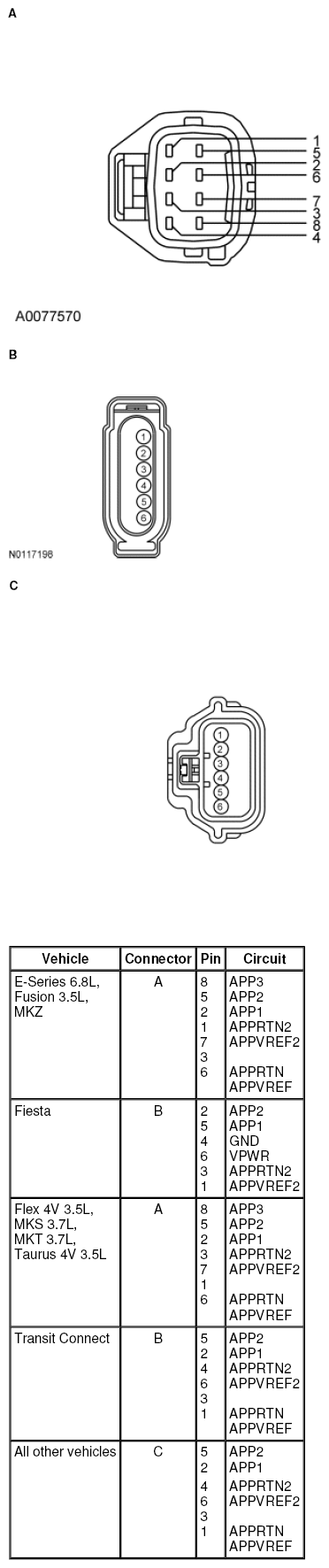

- APP sensor (9F836)
- harness circuits: APPRTN, APPRTN2, APPVREF, APPVREF2, APP1, APP2, and APP3
- powertrain control module (PCM) (12A650)

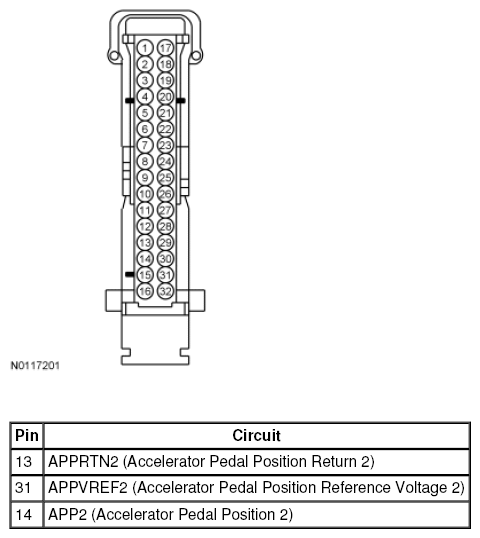

Powertrain Control Module (PCM) Connector
For PCM connector views or reference values, refer to REFERENCE VALUES article.
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| E-Series 6.8L | 170 PIN | B28 | APP3 |
| B17 | APP2 | ||
| B5 | APP1 | ||
| Edge 2.0L, Explorer 2.0L, Focus | 154 PIN | B26 | APP2 |
| B52 | APP1 | ||
| F-150 3.5L | 198 PIN | B54 | APP2 |
| B55 | APP1 | ||
| Fiesta | 128 PIN | B44 | APP1 |
| Flex 4V 3.5L, MKS 3.7L, MKT 3.7L, Taurus 4V 3.5L | 190-PIN | B27 | APP3 |
| B26 | APP2 | ||
| B25 | APP1 | ||
| Fusion 3.5L, MKZ | 140 PIN | B27 | APP3 |
| B26 | APP2 | ||
| B25 | APP1 | ||
| All other vehicles | 190-PIN | B29 | APP2 |
| B28 | APP1 |
