Engine Temperature Sensor: Service and Repair

Cylinder Head Temperature (CHT) Sensor









NOTE: If the cylinder head is being replaced, the Cylinder Head Temperature (CHT) sensor must be replaced.

1. Remove the battery tray.

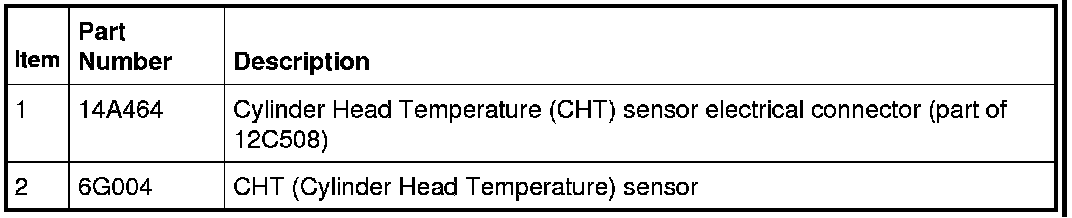

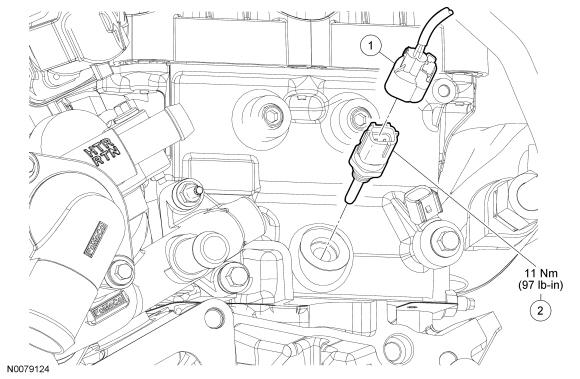

2. Disconnect the CHT (Cylinder Head Temperature) sensor electrical connector.

3. Remove the CHT (Cylinder Head Temperature) sensor.
- To install, tighten to 11 Nm (97 lb-in).


4. To install, reverse the removal procedure.
