In-Vehicle Temperature Sensor

In-Vehicle Temperature Sensor - Fusion, Milan

Fusion, Milan









Removal and Installation

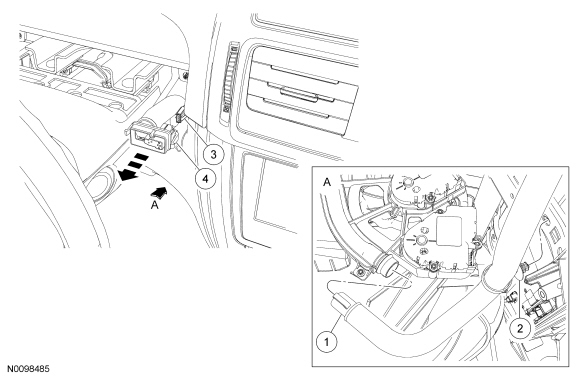

1. Remove the instrument cluster finish panel.

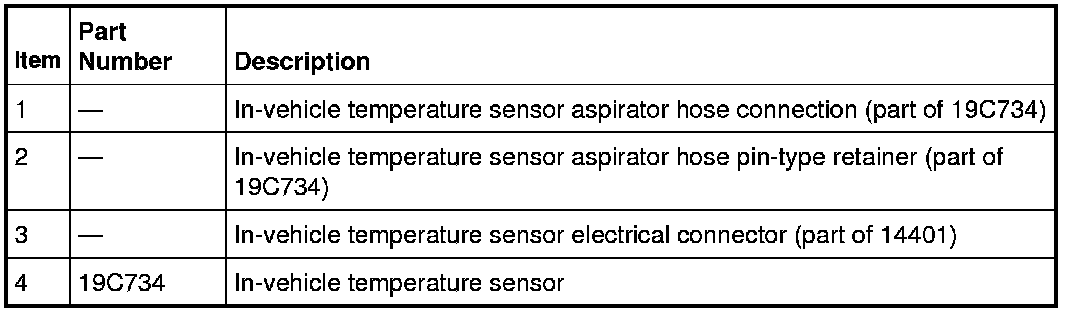

2. Disconnect the in-vehicle temperature sensor aspirator hose connection at the heater core and evaporator core housing.

3. Detach the in-vehicle temperature sensor aspirator hose pin-type retainer.

4. Disconnect the in-vehicle temperature sensor electrical connector.

5. Remove the in-vehicle temperature sensor and aspirator hose assembly.

6. To install, reverse the removal procedure.
