Seat Position Sensor
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

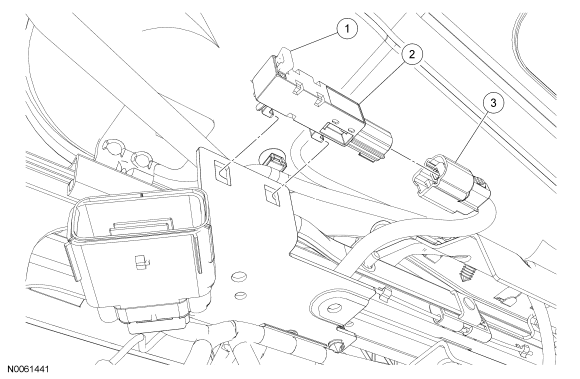

Manual seat shown, power seat similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Seat position sensor locking clip (part of 14B416) |
| 2 | 14B416 | Seat position sensor |
| 3 | - | Seat position sensor electrical connector (part of 14C719) |
NOTE:
The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE:
The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
- Remove the driver seat. For additional information, refer to SEATING article.
- Disconnect the seat position sensor electrical connector.
- Push the tab ends inward to release the seat position sensor locking clip.
Slide the seat position sensor forward to release the 2 hooks from the bracket and remove the seat position sensor.
- To install, reverse the removal procedure.
