Camshaft Position (CMP) Sensor: Notes
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

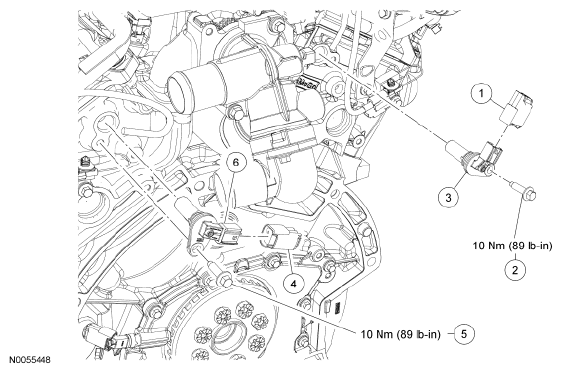

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | RH Camshaft Position (CMP) sensor electrical connector |
| 2 | W503279 | RH CMP sensor bolt |
| 3 | 6B288 | RH CMP sensor |
| 4 | 14A464 | LH CMP sensor electrical connector |
| 5 | W503279 | LH CMP sensor bolt |
| 6 | 6B288 | LH CMP sensor |
