Input Shaft Exploded View

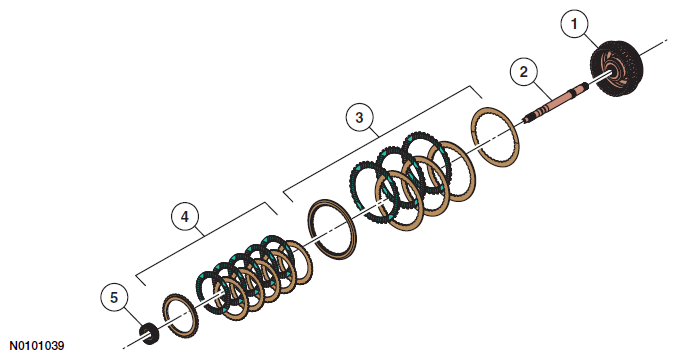

Fig 1: Exploded View Of Input Shaft
G06096822Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7G384 Direct (3, 5, R)/Overdrive (O/D) (4, 5, 6) clutch hub
2 7F213 Input shaft
3 7B164 Direct (3, 5, R) clutch
4 7B164 O/D (4, 5, 6) clutch
5 7D491 Center planetary sun gear
