Center Support: Assembly

NOTE: The piston return spring, snap ring or snap ring retainer from the low/reverse clutch side of the center support are not interchangeable with the forward clutch side of the center support. When assembling the center support, be careful not to mix the components from the low/reverse clutch side with the forward clutch side of the center support. Failure to assemble the center support with the components in the correct side will result in damage to the center support, low/reverse or forward clutch.

Clean and inspect the center support for damage. Install a new center support if necessary.

NOTE: The forward clutch piston in the center support is the side of the center support with the short legs.

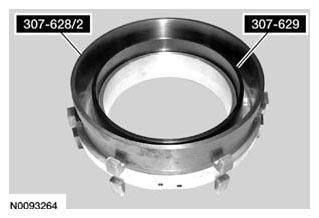

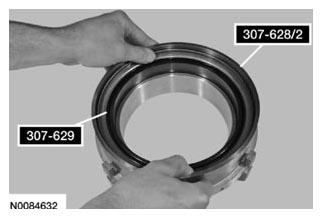

Fig 1: Identifying Low Reverse Piston Seal Protector 307-628/2 And Low Reverse / 1-2-3-4 Piston Seal Protector 307-629

Courtesy of FORD MOTOR CO.

Install the Low Reverse Piston Seal Protector 307-628/2 and the Low Reverse / 1-2-3-4 Piston Seal Protector 307-629 on the forward clutch piston side of the center support.
Lubricate the sealing surfaces of the forward (1, 2, 3, 4) clutch piston with petroleum jelly.

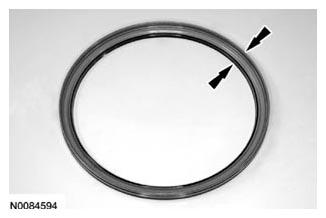

Fig 2: Locating Forward (1, 2, 3, 4) Clutch Piston
Courtesy of FORD MOTOR CO.
Position the forward (1, 2, 3, 4) clutch piston on Low Reverse Piston Seal Protector 307-628/2 and the Low Reverse / 1-2-3-4 Piston Seal Protector 307-629 and push it down into the center support.

Fig 3: Positioning Forward (1, 2, 3, 4) Clutch Piston
Courtesy of FORD MOTOR CO.
Install the forward (1, 2, 3, 4) clutch piston return spring.

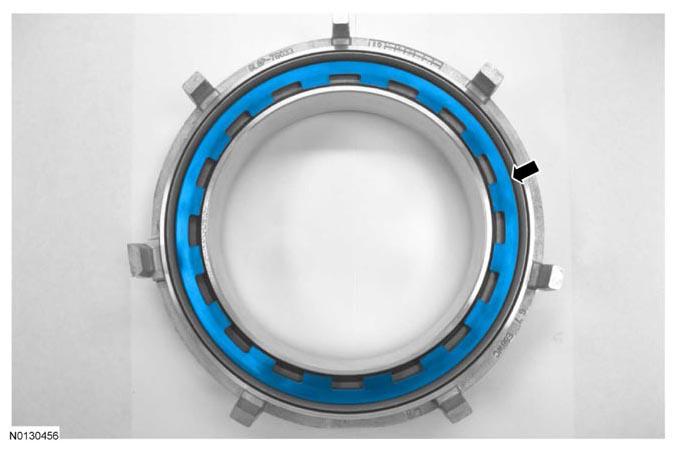

Fig 4: Locating Forward (1, 2, 3, 4) Clutch Piston Return Spring
Courtesy of FORD MOTOR CO.

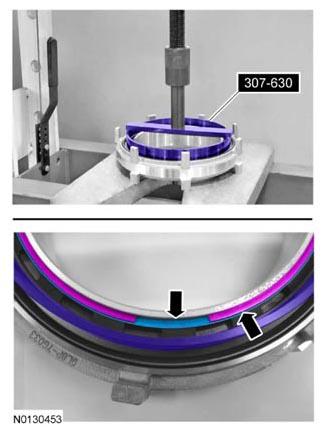

Using the Center Support Piston Spring Compressor 307-630 and a press, compress the forward (1, 2, 3, 4) clutch return spring and install the snap ring retainer and the snap ring.

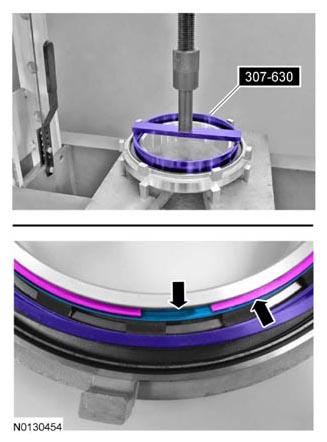

Fig 5: Compressing Forward (1, 2, 3, 4) Clutch Return Spring
Courtesy of FORD MOTOR CO.
Inspect the snap ring to be sure it is seated in the groove on the center support.

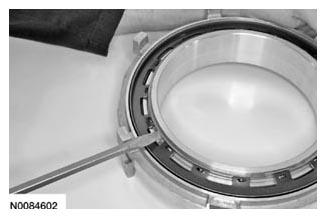

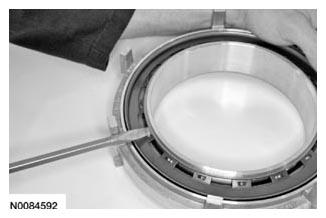

Fig 6: Inspecting Snap Ring
Courtesy of FORD MOTOR CO.
Turn the center support over and install the Low Reverse Piston Seal Protector 307-628/1 and 307-628/2 on the low/reverse piston side of the center support.

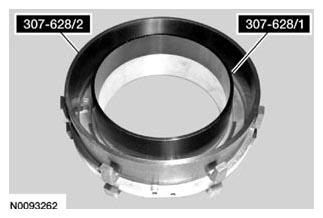

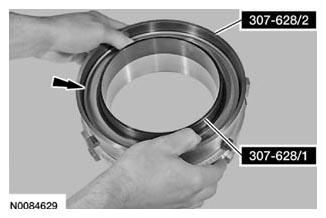

Fig 7: Identifying Low Reverse Piston Seal Protector 307-628/1 And 307-628/2 On Low/Reverse Piston Side Of Center Support
Courtesy of FORD MOTOR CO.
Lubricate the sealing surfaces of the low/reverse piston with petroleum jelly.

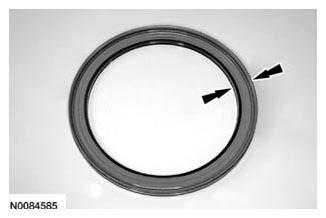

Fig 8: Locating Sealing Surfaces Of Low/Reverse Piston
Courtesy of FORD MOTOR CO.
Position the low/reverse clutch piston on the Low Reverse Piston Seal Protector 307-628/1 and 307-628/2 and push it down into the center support.

Fig 9: Positioning Low/Reverse Clutch Piston On Low Reverse Piston Seal Protector 307-628/1 And 307-628/2
Courtesy of FORD MOTOR CO.
Install the low/reverse piston return spring.

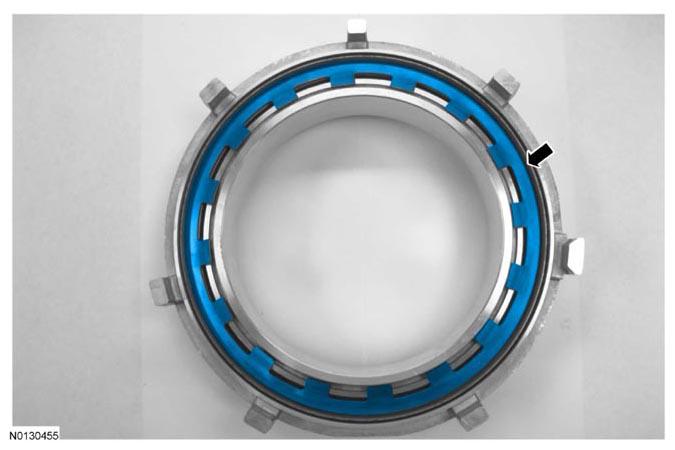

Fig 10: Locating Low/Reverse Clutch Return Spring
Courtesy of FORD MOTOR CO.
Using the Center Support Piston Spring Compressor 307-630 and a press, compress the low/reverse clutch return spring and install the snap ring retainer and the snap ring.

Fig 11: Compressing Low/Reverse Clutch Return Spring
Courtesy of FORD MOTOR CO.
Inspect the snap ring to be sure it is seated in the groove on the center support.

Fig 12: Inspecting Snap Ring Is Seated In Groove On Center Support
Courtesy of FORD MOTOR CO.
