Clutch Support Tower: Disassembly

  1. Using a suitable tool, remove and discard the 4 Teflon® seals.

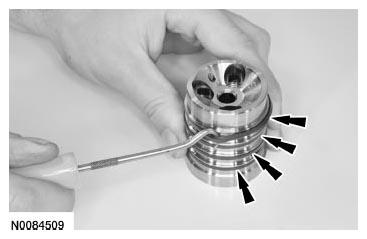

    Fig 1: Removing Teflon® Seals
    G06097460Courtesy of FORD MOTOR CO.
  2. Clean and inspect the clutch support tower for damage. Install a new clutch support tower if damaged.

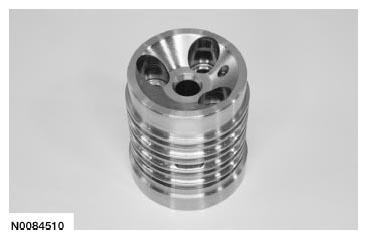

    Fig 2: Identifying Clutch Support Tower
    G06097461Courtesy of FORD MOTOR CO.
