Solenoid Body: Notes

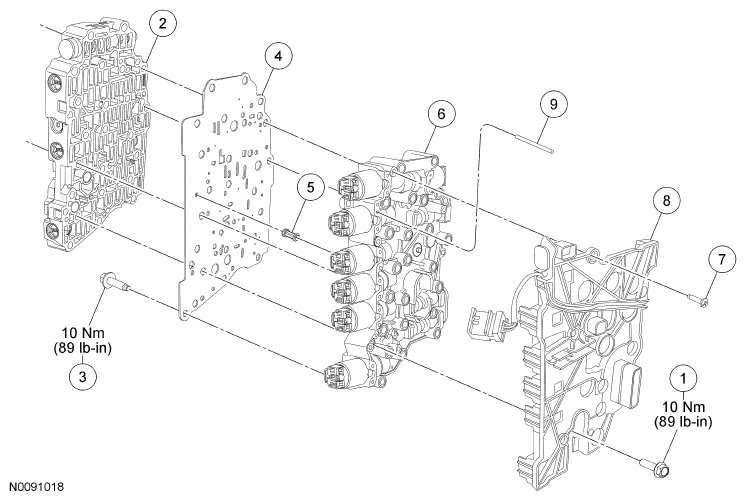

Fig 1: Exploded View Of Solenoid Body With Torque Specifications (1 Of 2)
G06097479Courtesy of FORD MOTOR CO.

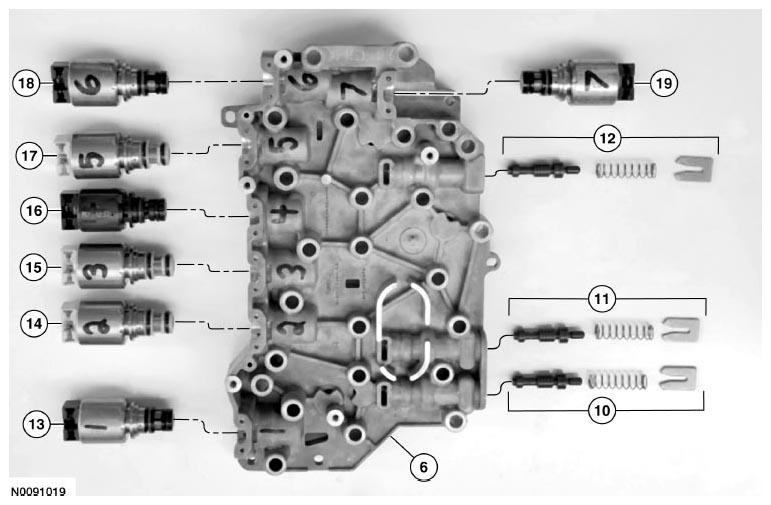

Fig 2: Exploded View Of Solenoid Body (2 Of 2)
G06097480Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W500303 Solenoid body-to-valve body bolt
2 7A100 Main control valve body
3 N605770 Solenoid body-to-valve body separator plate bolt (2 required)
4 7Z490 Solenoid body-to-valve body separator plate
5 7K221 Circuit filter
6 7G391 Solenoid body
7 W505513 Leadframe screw (5 required)
8 7G276 Leadframe
9 7H111 Solenoid retaining pin (14 required)
10 7J187 Direct (3, 5, R) clutch latch valve
11 7J187 Intermediate (2, 6) clutch latch valve
12 7J187 Low reverse/overdrive (4, 5, 6) clutch latch valve
13 7G383 Line Pressure Control (LPC) solenoid
14 7G136 Shift Solenoid C (SSC)
15 7G136 Torque Converter Clutch (TCC) solenoid
16 7G484 Shift Solenoid E (SSE) ON/OFF solenoid
17 7G136 Shift Solenoid A (SSA)
18 7G383 Shift Solenoid B (SSB)
19 7G383 Shift Solenoid D (SSD)
