Lower Intake Manifold: Notes

WARNING: This page is about a different variant/trim than selected.

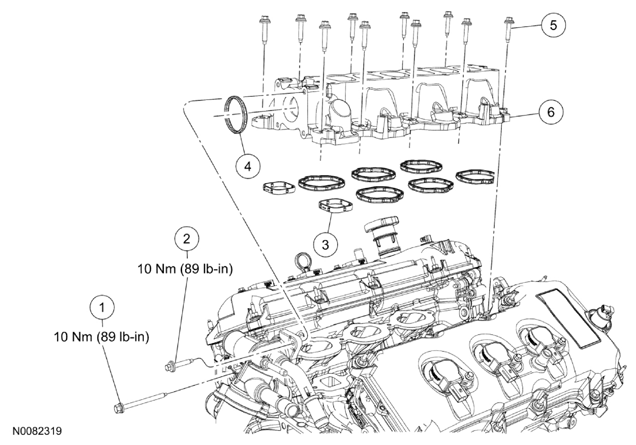

Fig 1: Exploded View Of Lower Intake Manifold With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W708607	Thermostat housing-to-lower intake manifold bolt
2	W503279	Thermostat housing-to-lower intake manifold bolt
3	9439	Lower intake manifold gasket (8 required)
4	8A571	Thermostat housing gasket
5	W503279	Lower intake manifold bolt (10 required)
6	9K461	Lower intake manifold
