Differential Exploded View

WARNING: This page is about a different variant/trim than selected.

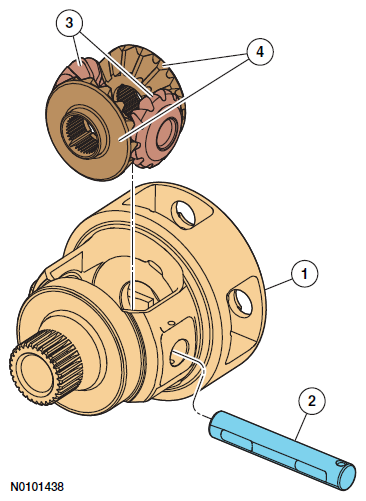

Fig 1: Identifying Differential Housing, Pinion Shaft, Pinion Gears And Side Gears
G06096828Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7F465 Differential housing
2 - Pinion shaft
3 - Pinion gears
4 - Side gears
