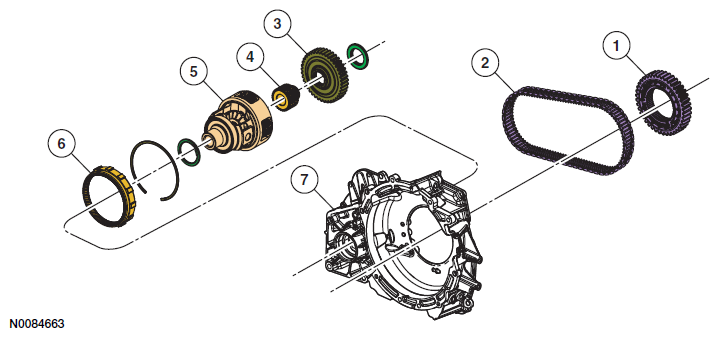

Final Drive Component Exploded View
WARNING: This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
7G132 |
Drive chain drive sprocket |
| 2 |
7G249 |
Drive chain |
| 3 |
7G132 |
Drive chain driven sprocket |
| 4 |
7F342 |
Final drive planetary sun gear |
| 5 |
7F465 |
Differential assembly |
| 6 |
7F343 |
Final drive planetary ring gear |
| 7 |
7975 |
Torque converter housing |
