Transmission Range (TR) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

Position TR sensor on the manual shaft, align the 2 TR sensor bolt holes and install the 2 bolts.
- Tighten to 5 Nm (44 lb-in).

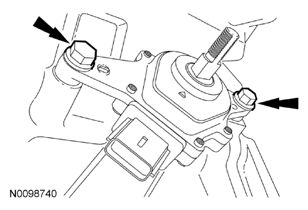

  Fig 1: Locating TR Sensor Mounting Bolts
  Courtesy of FORD MOTOR CO.
Install the manual control lever and the nut.
- Tighten to 12 Nm (106 lb-in).

  Fig 2: Locating Manual Control Lever Mounting Nut
  Courtesy of FORD MOTOR CO.
Connect the TR sensor electrical connector.

Fig 3: Locating TR Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Adjust the selector lever cable. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS - HYBRID . Connect the selector lever cable end.

Fig 4: Locating Selector Lever Cable End
Courtesy of FORD MOTOR CO.
Install the underbody cover and 7 screws.

Fig 5: View Of Underbody Cover Fasteners
Courtesy of FORD MOTOR CO.
