Removal and Installation

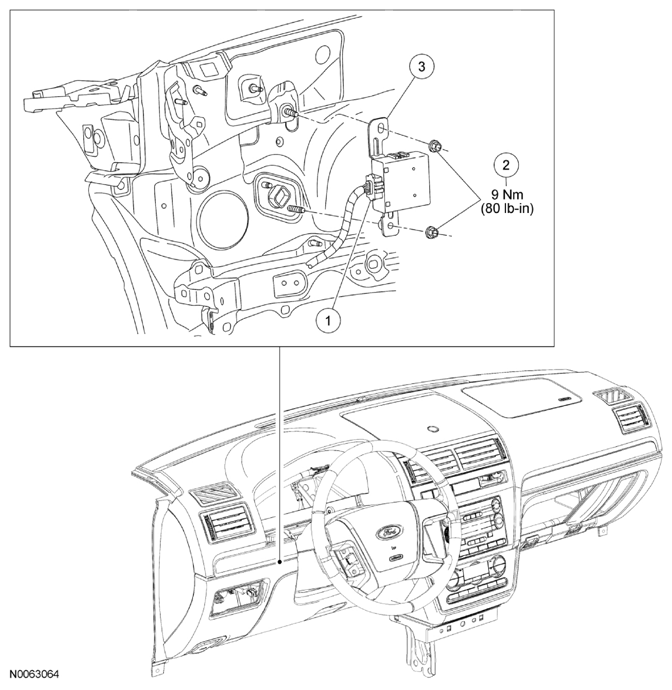

Fig 1: Exploded View Of 4X4 Control Module With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Electrical connector (part of 14A005)
2	W706840	4X4 control module nuts and washers (2 required)
3	7E453	4X4 control module and bracket assembly

From below the LH side instrument panel, disconnect the 4X4 control module harness connector.
Remove the two 4X4 control module nuts.
- To install, tighten to 9 Nm (80 lb-in).
Remove the 4X4 control module and bracket.
To install, reverse the removal procedure.
