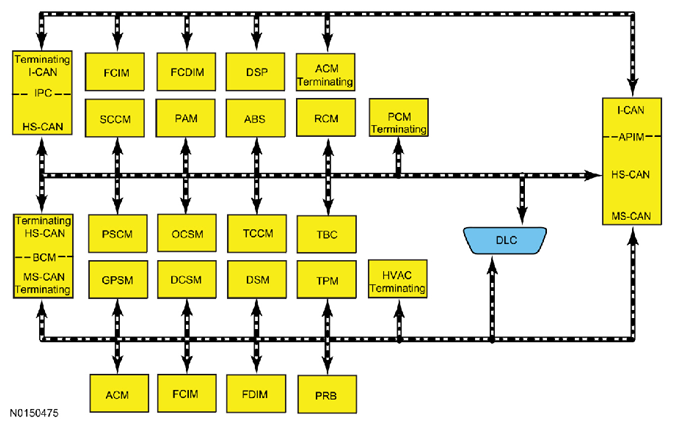

Network Topology - Vehicles with 4.2-Inch Screen and 8-Inch Touchscreen
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Module Name | Network Type | Termination Module |
|---|---|---|
| ABS module | HS-CAN | No |
| Accessory Protocol Interface Module (APIM) (if equipped) | HS-CAN | No |
| MS-CAN | No | |
| I-CAN | No | |
| Audio Front Control Module (ACM) (if equipped) | I-CAN | Yes |
| Audio Digital Signal Processing (DSP) module (if equipped) | I-CAN | No |
| Body Control Module (BCM) (gateway module) | MS-CAN | Yes |
| HS-CAN | Yes | |
| Driver Seat Module (DSM) (if equipped) | MS-CAN | No |
| Dual Climate Controlled Seat Module (DCSM) (if equipped) | MS-CAN | No |
| Front Controls Interface Module (FCIM) (if equipped) | I-CAN | No |
| Front Control/Display Interface Module (FCDIM) (if equipped) | I-CAN | No |
| Front Display Interface Module (FDIM) | MS-CAN | No |
| Global Positioning System Module (GPSM) (if equipped) | MS-CAN | No |
| HVAC module | MS-CAN | Yes |
| Instrument Panel Cluster (IPC) | HS-CAN | No |
| I-CAN | Yes | |
| Occupant Classification System Module (OCSM) | HS-CAN | No |
| Parking Aid Module (PAM) (if equipped) | HS-CAN | No |
| Power Steering Control Module (PSCM) (if equipped) | HS-CAN | No |
| PCM | HS-CAN | Yes |
| Power Running Board (PRB) module (if equipped) | MS-CAN | No |
| Restraints Control Module (RCM) | HS-CAN | No |
| Steering Column Control Module (SCCM) | HS-CAN | No |
| Tire Pressure Monitor (TPM) module (if equipped) | MS-CAN | No |
| Trailer Brake Control (TBC) module (if equipped) | HS-CAN | No |
| Transfer Case Control Module (TCCM) (if equipped) | HS-CAN | No |
