Throttle Body: Notes

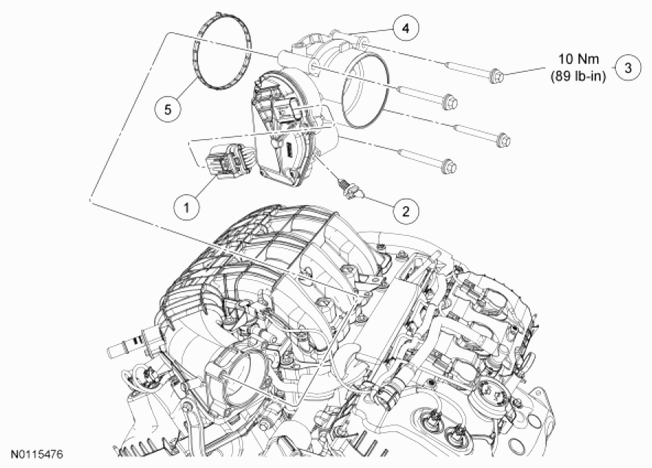

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Electronic throttle control electrical connector (part of 12C508) |
| 2 | - | Electronic throttle control electrical connector wiring harness pin-type retainer (part of 12C508) |
| 3 | W713443 | Throttle Body (TB) bolt (4 required) |
| 4 | 9F991 | TB |
| 5 | 9E936 | TB gasket |
