Wiper and Washer System Exploded View

WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Wipers

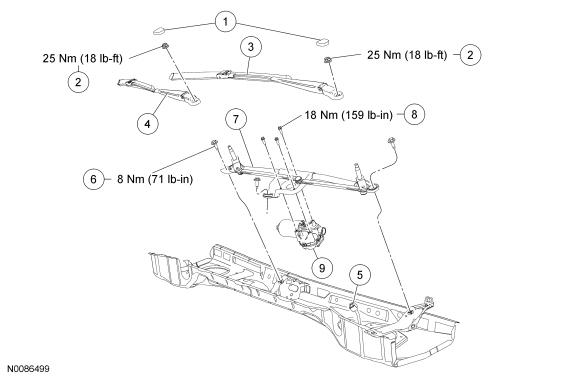

Fig 1: Exploded View Of Wiper and Washer System With Torque Specifications
GFD90385Courtesy of FORD MOTOR CO.
Item Part Number Description
1 17C526 Wiper pivot arm nut covers
2 W709581 Wiper pivot arm nuts (2 required)
3 17527 LH wiper arm
4 17526 RH wiper arm
5 - Wiper motor electrical connector (part of 14290)
6 N806528 Wiper mounting arm and pivot shaft bolt (3 required)
7 17566 Wiper mounting arm and pivot shaft assembly
8 - Wiper motor bolt (part of 17508) (3 required)
9 17508 Wiper motor

Washer Pump and Reservoir

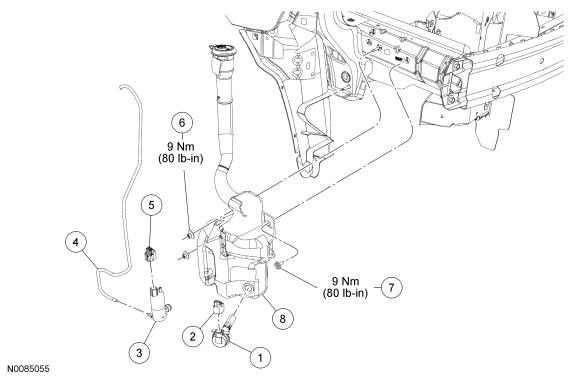

Fig 2: Washer Pump and Reservoir With Torque Specifications
GFD90386Courtesy of FORD MOTOR CO.
Item Part Number Description
1 17B649 Washer fluid level switch
2 - Washer fluid level switch electrical connector (part of 14290)
3 17664 Washer pump
4 17A605 Washer hose
5 - Washer pump electrical connector (part of 14290)
6 W709450 Washer reservoir nut (2 required)
7 W706681 Washer reservoir bolt
8 17618 Washer reservoir

  1. 1.

    For additional information, refer to the procedures in this service information.
