Selector Lever Assembly - Vehicles With: Column Shift: Removal

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the steering column shrouds. Refer to: Steering Column Shrouds .

2.

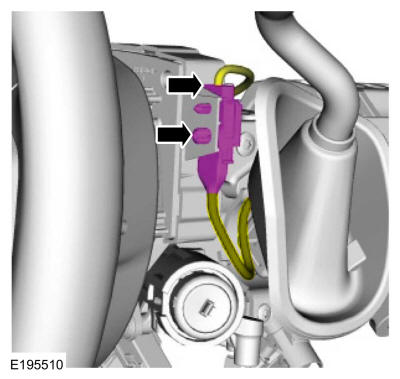

Disconnect the selector lever assembly electrical connector.

Courtesy of FORD MOTOR COMPANY

3.

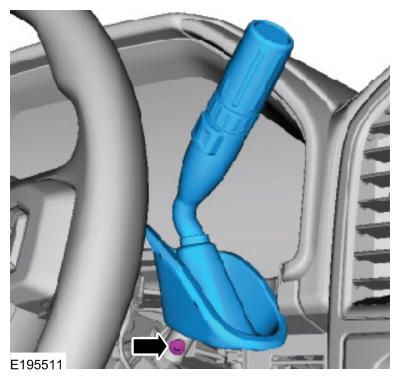

Remove the bolt and the selector lever assembly.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
