Front Bumper: Disassembly

All vehicles

1. 1.

   Remove the front bumper. Refer to: Front Bumper .

1. 2.

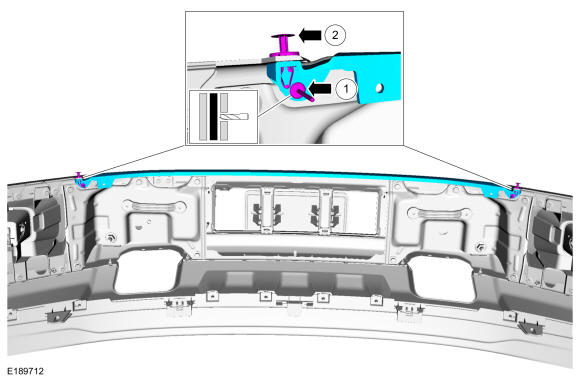

   Remove the front bumper upper trim plate.

   1. 1.

      Drill out the rivets.

   1. 2.

      Remove the pin-type retainers.

Courtesy of FORD MOTOR COMPANY

1. 3.


   NOTE: On both sides.

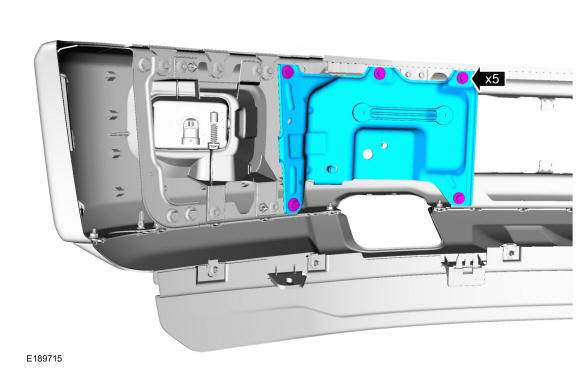

   Remove the bolts and the front bumper brackets.

   Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

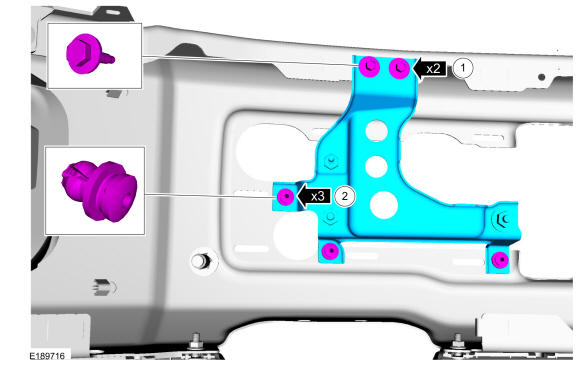

1. 4.

   Remove the CCM bracket.

   1. 1.

      Remove the CCM bracket bolts.

      Torque: 42 lb.in (4.8 Nm)

   1. 2.

      Remove the CCM bracket scrivet.

Courtesy of FORD MOTOR COMPANY

1. 5.


   NOTE: On both sides.

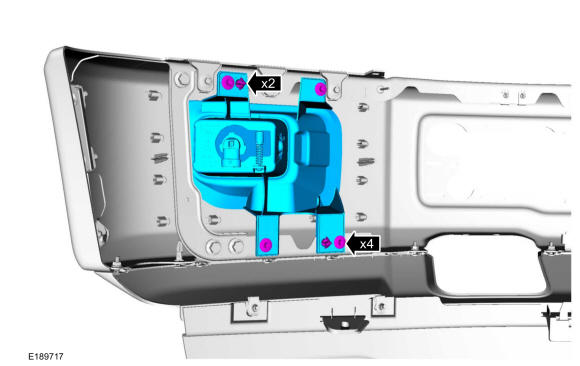

   Remove the fog lamp bolts, push pins and the fog lamp assembly.

   Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

1. 6.


   NOTE: On both sides.

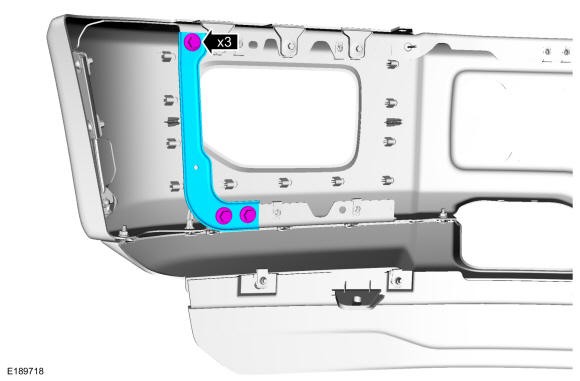

   Remove the bolts and the front bumper outer bracket.

   Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

1. 7.

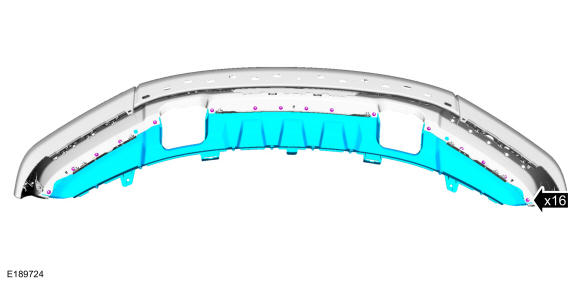

   Remove the bolts and the front bumper air deflector.

Courtesy of FORD MOTOR COMPANY

Vehicles with tow hooks

1. 8.


   NOTE: On both sides.

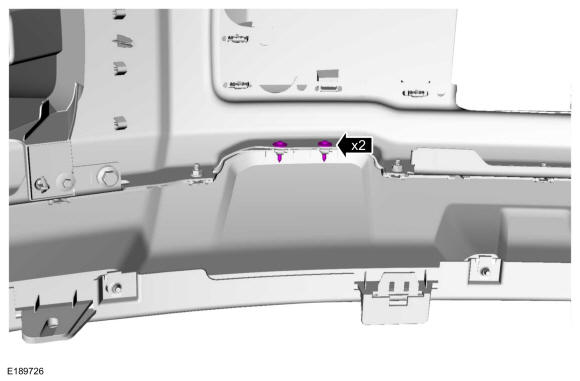

   Remove the front valence screws.

   Torque: 10 lb.in (1.1 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

1. 9.

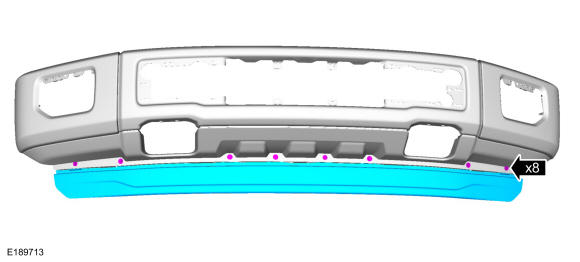

   Remove the nuts and the front bumper valence.

   Torque: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY

1. 10.


   NOTE: On both sides.

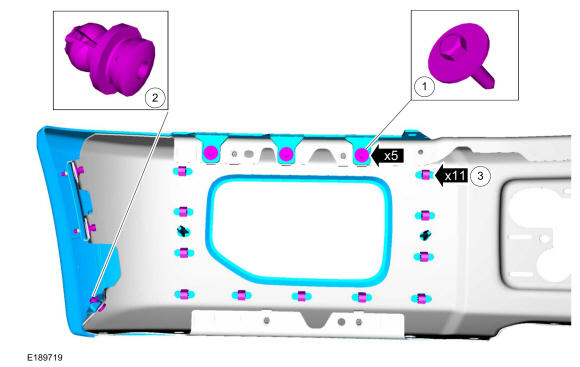

   Remove the front bumper cover.

   1. 1.

      Remove the front bumper cover bolts.

      Torque: 28 lb.in (3.2 Nm)

   1. 2.

      Remove the front bumper cover scrivet.

   1. 3.

      Release the spring type retainers.

Courtesy of FORD MOTOR COMPANY
