Front Strut and Spring Assembly: Removal

WARNING: This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1.

Remove the wheel and tire. Refer to: Wheel and Tire .

2.

Remove the brake hose bracket bolt and position the brake hose aside.

Courtesy of FORD MOTOR COMPANY

3.

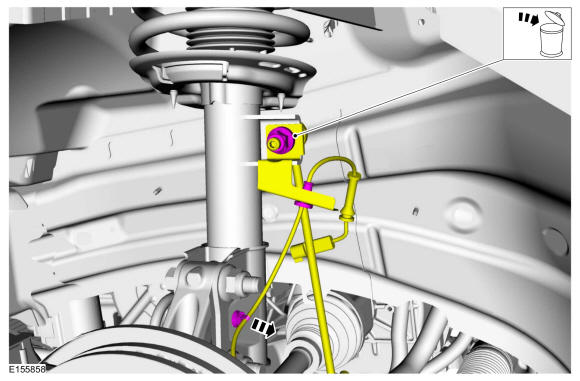

Remove and discard the front stabilizer bar link upper nut and separate the front stabilizer bar link from the front strut and spring assembly. Unclip and position aside the wheel speed sensor harness.

Courtesy of FORD MOTOR COMPANY

4.

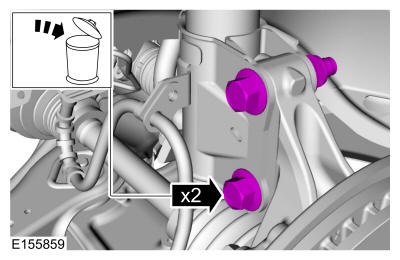

Remove and discard the front strut and spring assembly-to-wheel knuckle bolts and nuts.

Courtesy of FORD MOTOR COMPANY

5.

Remove the cowl panel. Refer to: Cowl Panel .

6.

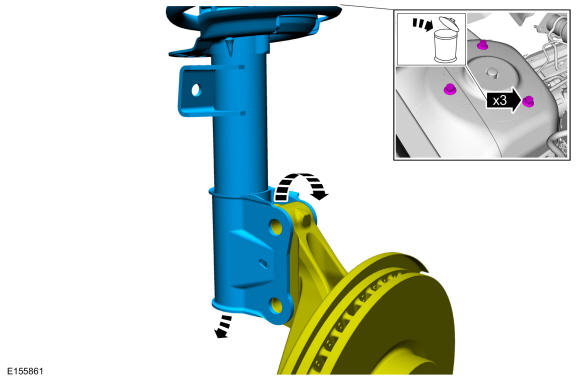

Remove and discard the front strut and spring assembly upper bolts and remove the front strut and spring assembly from the vehicle.

Courtesy of FORD MOTOR COMPANY
