Body Control Module (BCM): Removal

WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If the BCM did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM is being replaced

NOTE: If equipped, the PAM is integral to the BCM. This step is only necessary if the BCM is being replaced.

Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.

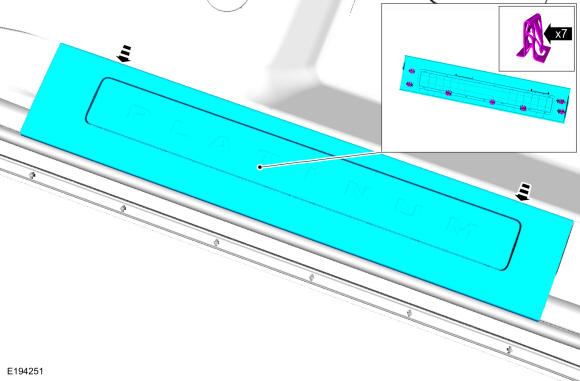

Release the clips and remove the RH side front scuff plate.

Courtesy of FORD MOTOR COMPANY

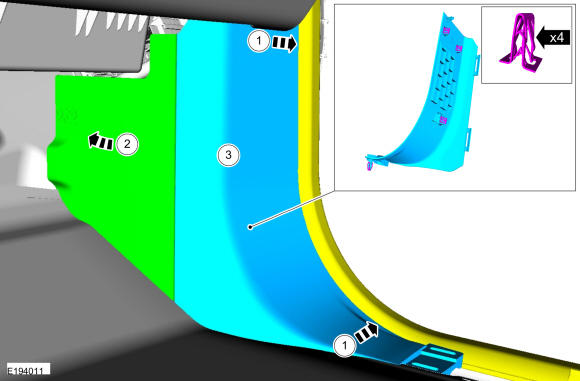

1. Position aside the weather strip.
2. Remove the BCM access cover.
3. Release the 4 clips and remove the RH side lower cowl trim panel.
Courtesy of FORD MOTOR COMPANY

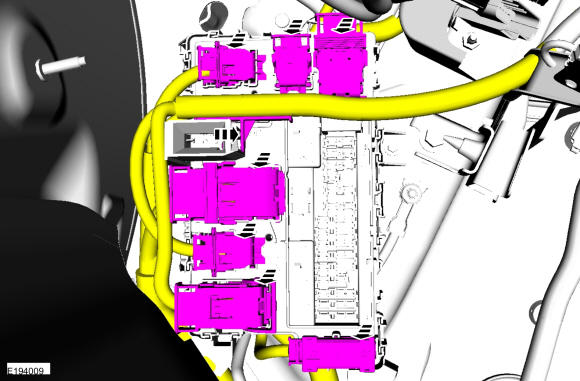

Disconnect the electrical connectors.
- Release the harness retainer.
Courtesy of FORD MOTOR COMPANY

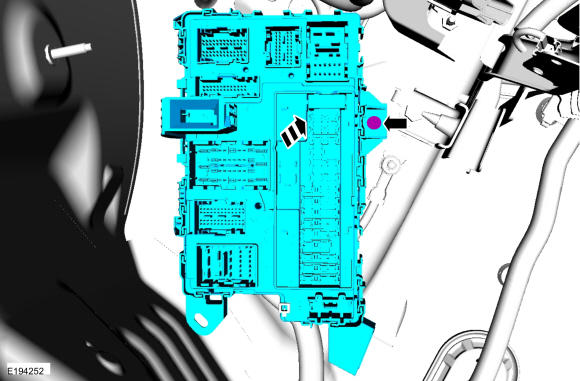

Remove the bolt and the BCM.

Courtesy of FORD MOTOR COMPANY
